LUDIC B6 + potentiometer control box
Ref. B6VPP_VARPP_P
739.00 € HT
886.80 € TTC

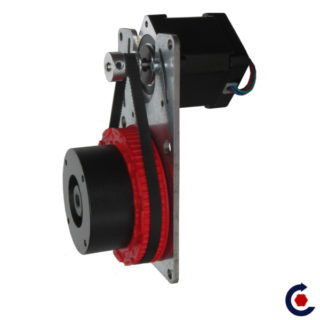

Motorised axis on a plate to be inserted in your structure. Allows you to motorise your decorations and displays.
-
LUDIC range
- Variable speed up to 65 rpm with your own driver/program
- Direction of rotation according to the polarity of your wiring
- Galvanized steel plate: Lxwxh 130 x 85 x 3 mm
- 4 fixing holes Ø 5 mm
- Hub Ø 58 mm
- 4 tapped holes M4 Ø 50 mm
- Supplied wired 12 Vdc

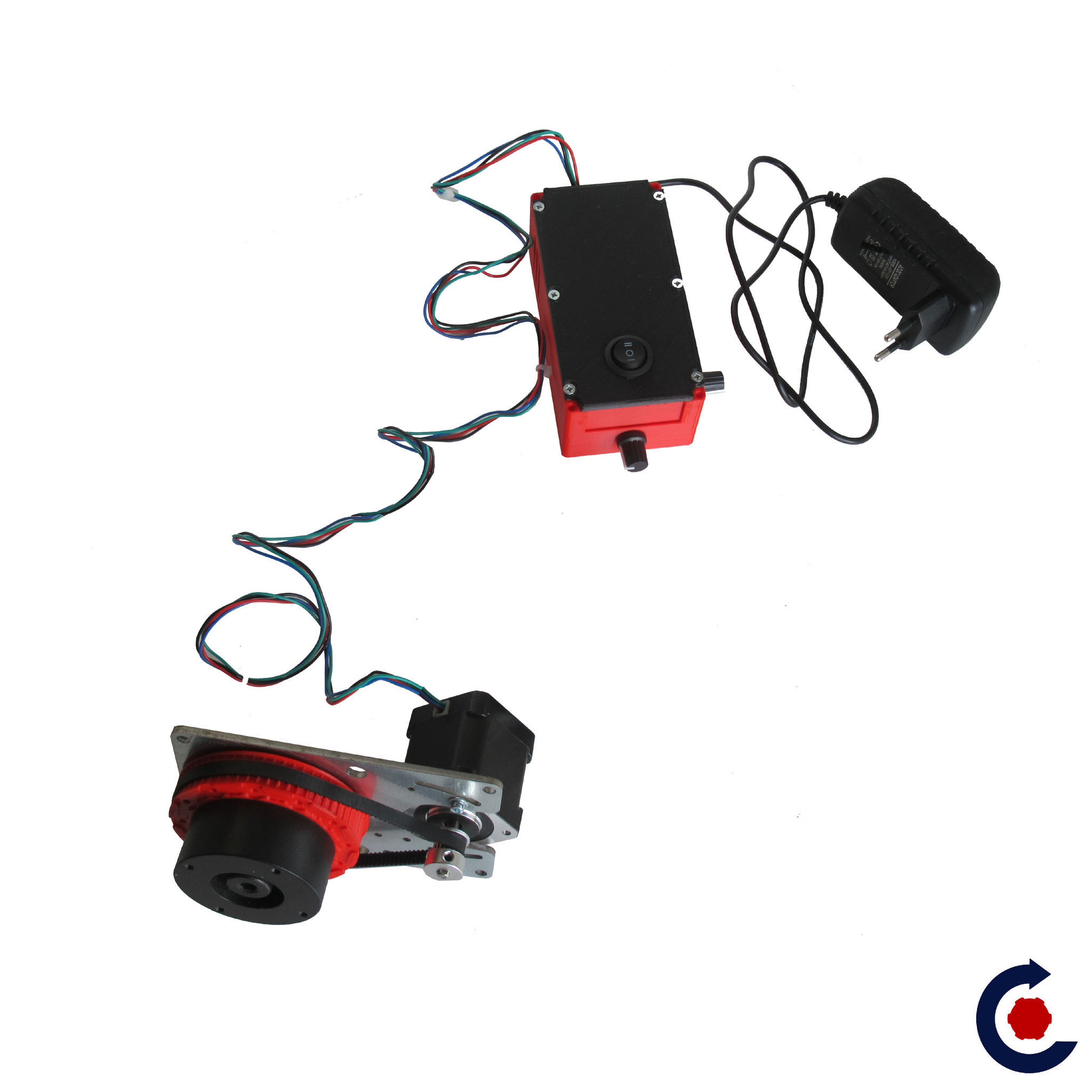

- Supplied with driver for potentiometer control :
- On/Off button/Direction of rotation
- Potentiometers for speed and accel/decel ramps
- For indoor use
Max load for standard speed
Load > as speed increases
Wall position and load against the hub: 16 kg max
Wall position and load 10 cm from the hub: 10 kg max
Drive torque (unbalance) max:
1 kg at 10 cm (ex. 2.5 kg at 4 cm)
Characteristics
Documentations
| Charge capacité | : | 15 kg |
| Speed rotation | : | Variable speed tr/min |
| Sens of rotation | : | Two-way |
| Power supply | : | 12 Vdc |
| Lenght | : | 130 mm |
| Width | : | 85 mm |
| Height | : | 91 mm |
| Destination | : | LUDIC |
| Classe | : | Premium |
