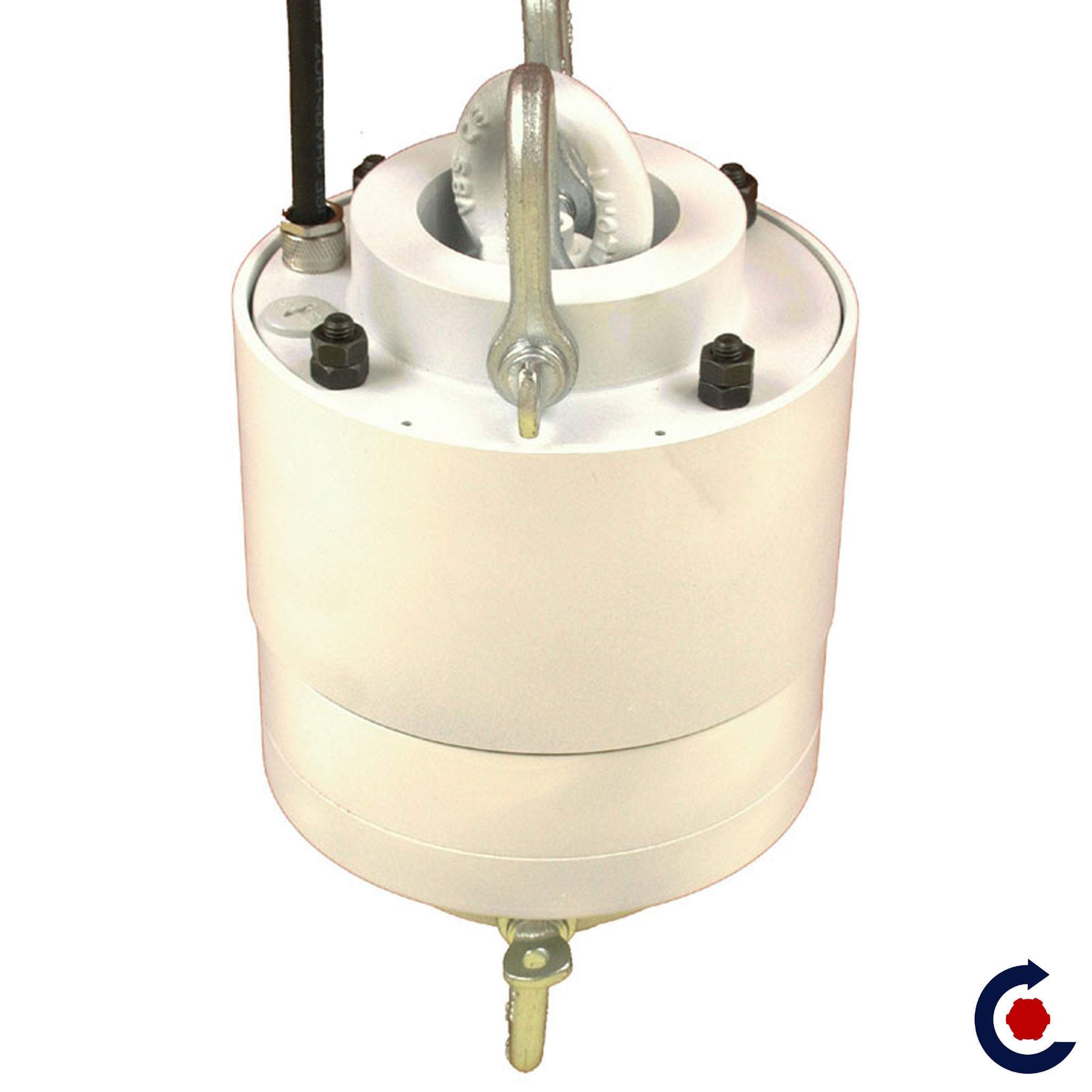

SECURIMAX triple-safety rotating hoist – 250 kg – 2 rpm – 2300 W
Ref. SX160SC3P15
The SECURIMAX 250 kg rotating suspension system is designed for professional installations requiring smooth rotation, a 2300 W rotating power supply, and the highest level of safety.
Its APAVE self-certified triple safety system guarantees reliable operation in demanding environments: events, TV studios, clubs, theatres, lighting set designs and permanent installations.
With its patented automatic clutch release, the suspension protects both the motor and the set in the event of a jam. Rotation resumes automatically once the obstruction has been removed.
With a speed of 2 rpm, a compact diameter of 160 mm and a robust construction, the SECURIMAX is the ideal solution for rotating illuminated scenery, disco balls, LED structures, rotating signs or any element requiring a continuous rotating power supply.
-
Maximum working load (MWL) : 250 kg
-
Rotation : 2 rpm
-
Direction of rotation : clockwise
-
Motor power supply : 230 Vac
-
Rotating power supply : 1000 W – Classe 1
-
Over height : 310 mm
-
Diameter : 160 mm
-
Intended use: indoor
-
Security :
-
2 central rings (fixed + rotating)
-
4 safety rings (2 top + 2 bottom)
-
Patented automatic disengagement mechanism
-
| Charge capacité | : | 250 kg |
| Speed rotation | : | 2 rpm tr/min |
| Sens of rotation | : | Clockwise |
| Power supply | : | 230 Vac |
| Rotating electrical inlet | : | 2300 Watt |
| Height | : | 310 mm |
| Diameter | : | 160 mm |
| Unit package | : | 400x300x270 mm |
| Classe | : | Excellent |
