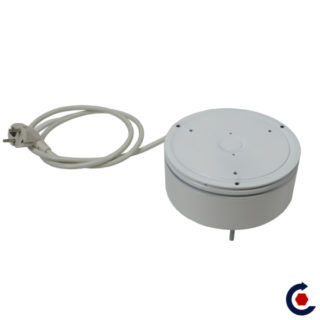

Turntable ECONOMIC
30kg 2rpm B12 Studs
Ref. FdsP12SV20B12G
216.00 € HT
259.20 € TTC

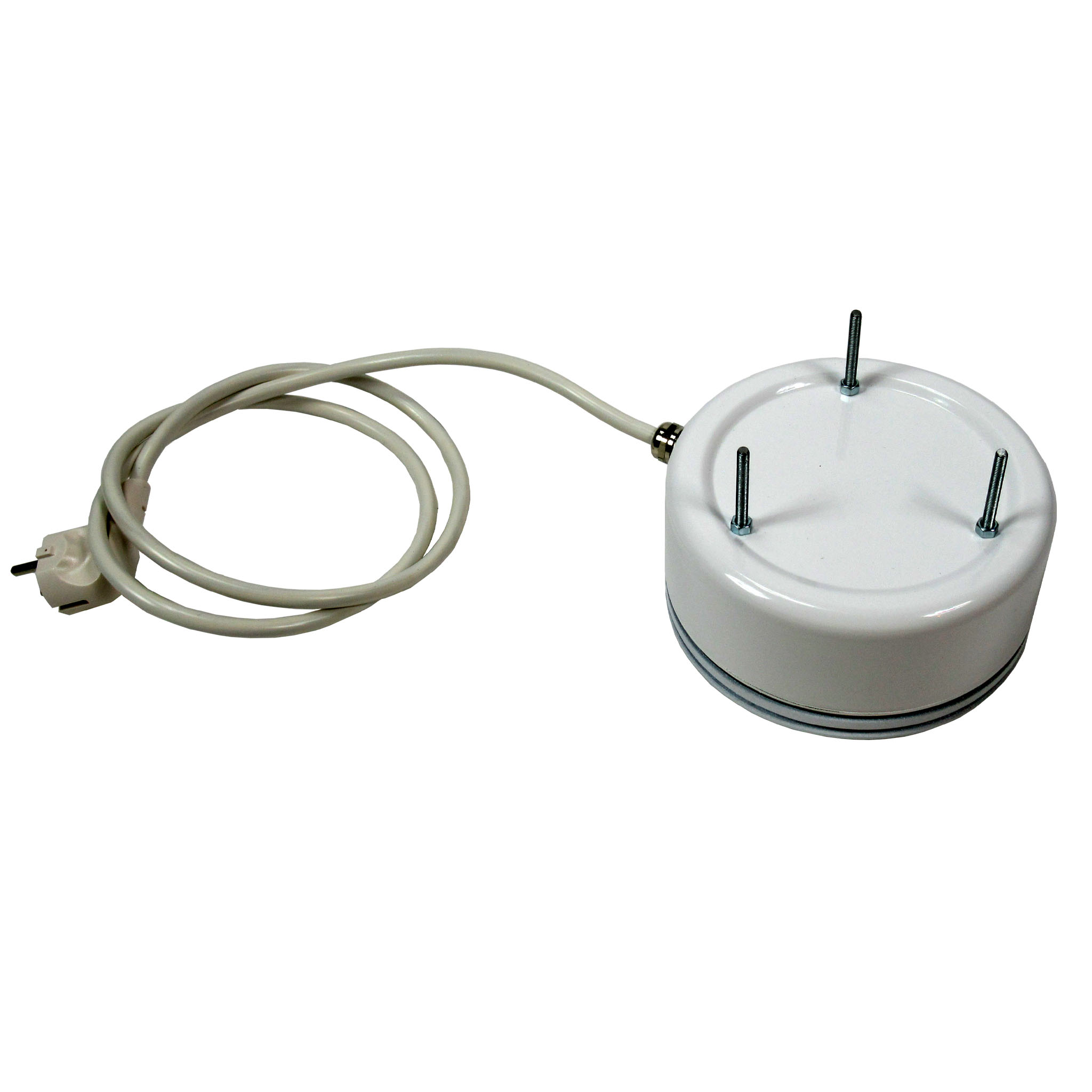

Turntable attached from below by 3 M5 threaded rods: facilitates installation in your structure for a customized setup.
-
-
ECONOMIC B12S range
- Rotating part Ø 118 mm
- 2 rpm
- Clockwise when viewed from above
- Max. load: 30 kg
- Safety clutch
- 3 M5 holes on rotating part
- Housing with 230 Vac power cable
- Bi+T plug ~1.2m
- White paint finish
- Indoor use
-
- Check the drive capacity of this range based on the weight, diameter (Ø) and height of your load. Refer to the chart available in the ‘Documentation’ section, accessible under the photo thumbnails on this page.
Characteristics
Documentations
| Charge capacité | : | 30 kg |
| Speed rotation | : | 2 rpm tr/min |
| Sens of rotation | : | Clockwise |
| Power supply | : | 230 Vac |
| Ø rotating part | : | 120 mm |
| Ø part base | : | 120 mm |
| Height | : | 76 mm |
| Diameter | : | 118 mm |
| Destination | : | ECONOMIC |
| Classe | : | Reliable |
