Platform Ø 2.5 m PLATY
power supply and RJ45 turntable
load 800 kg
Ref. PLY25ADPLC3P15RJ45

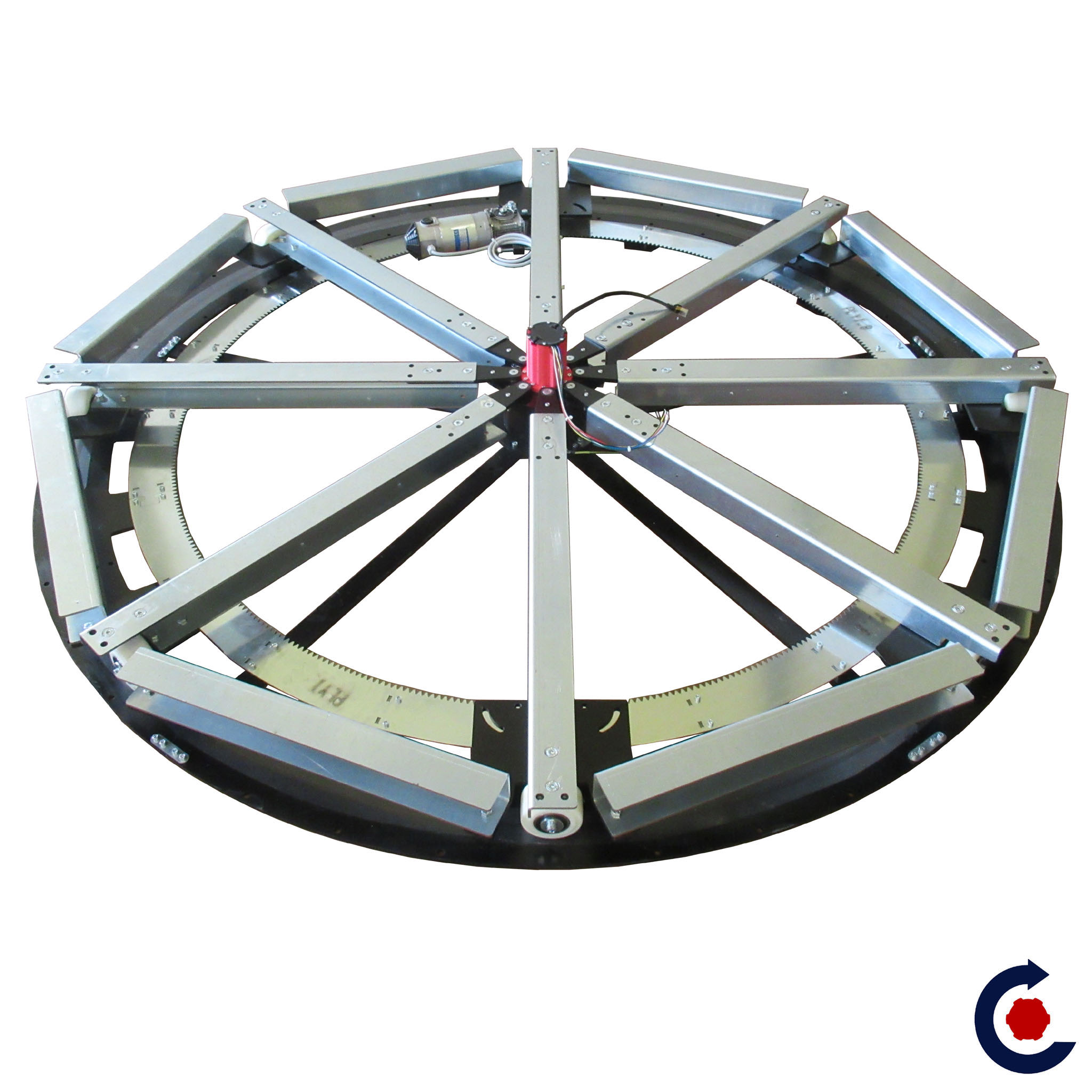

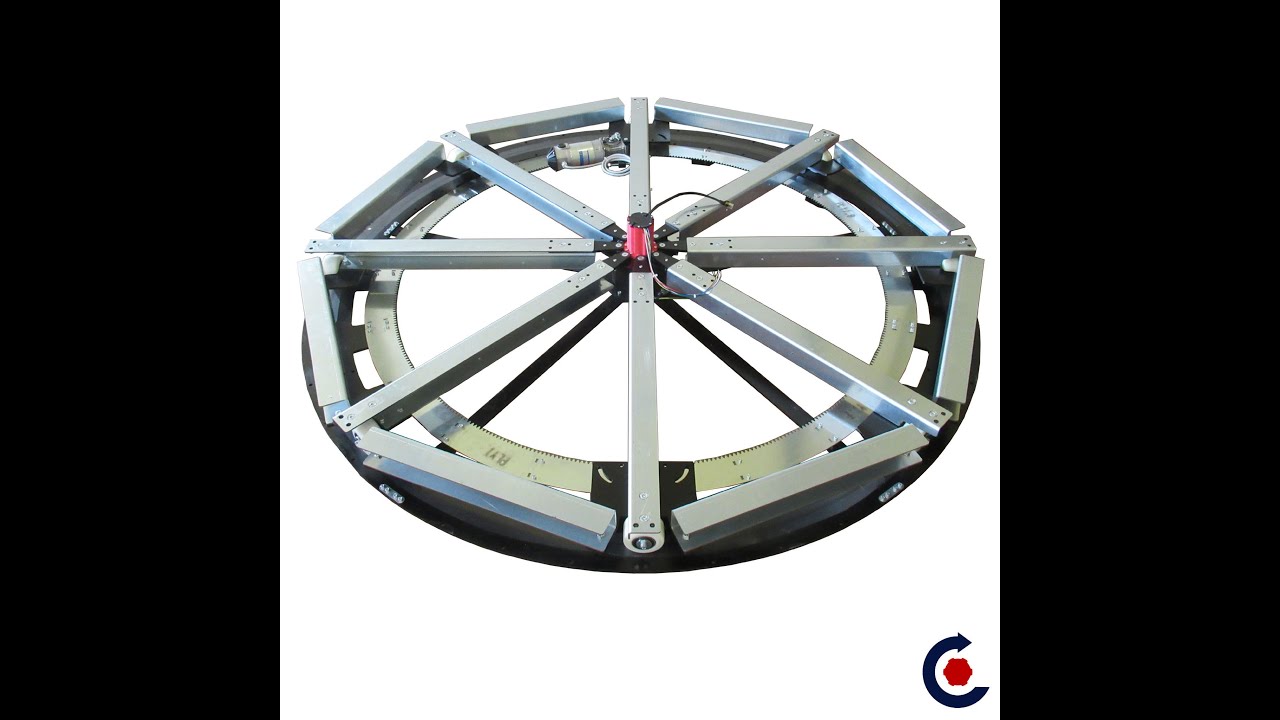

This motorized rotating platform Ø 2.5 m h:130mm is quick to install. Its variable speed means it can be used as a rotating stage to suit your entertainment requirements.
It's equipped with a rotating power supply and RJ45 connection for DJs, visual entertainers, etc.
- Raceway
- Safety release
- Delivered without floor, without covering
- Hammered painting
- Indoor use
-
PLATY range
- 0 to 2 rpm speed depending on voltage
- Rotating electrical feeder 3 wires/15 A
- RJ45 connector on rotating part
- 230Vac/24Vdc power supply not ioncluded/add
If you don't have a power supply that fits inside the Ø of the raceway, please contact us to add the raceway option with power supply connector. (in photo Ø special rea.)
Characteristics
| Charge capacité | : | 800 kg |
| Speed rotation | : | Variable speed tr/min |
| Power supply | : | 24 Vdc |
| Ø rotating part | : | 2500 mm |
| Rotating electrical inlet | : | 2750 Watt |
| Height | : | 130 mm |
| Diameter | : | 2500 mm |
| Destination | : | PLATY |
