12-wire puppeteer - max load 1 kg.wire
Ref. FdSMARIOBOX
3 671.00 € HT
4 405.20 € TTC

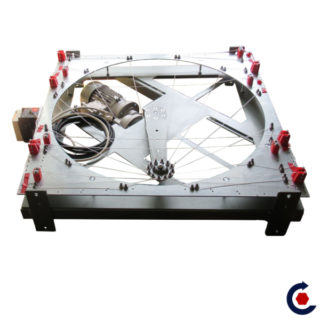

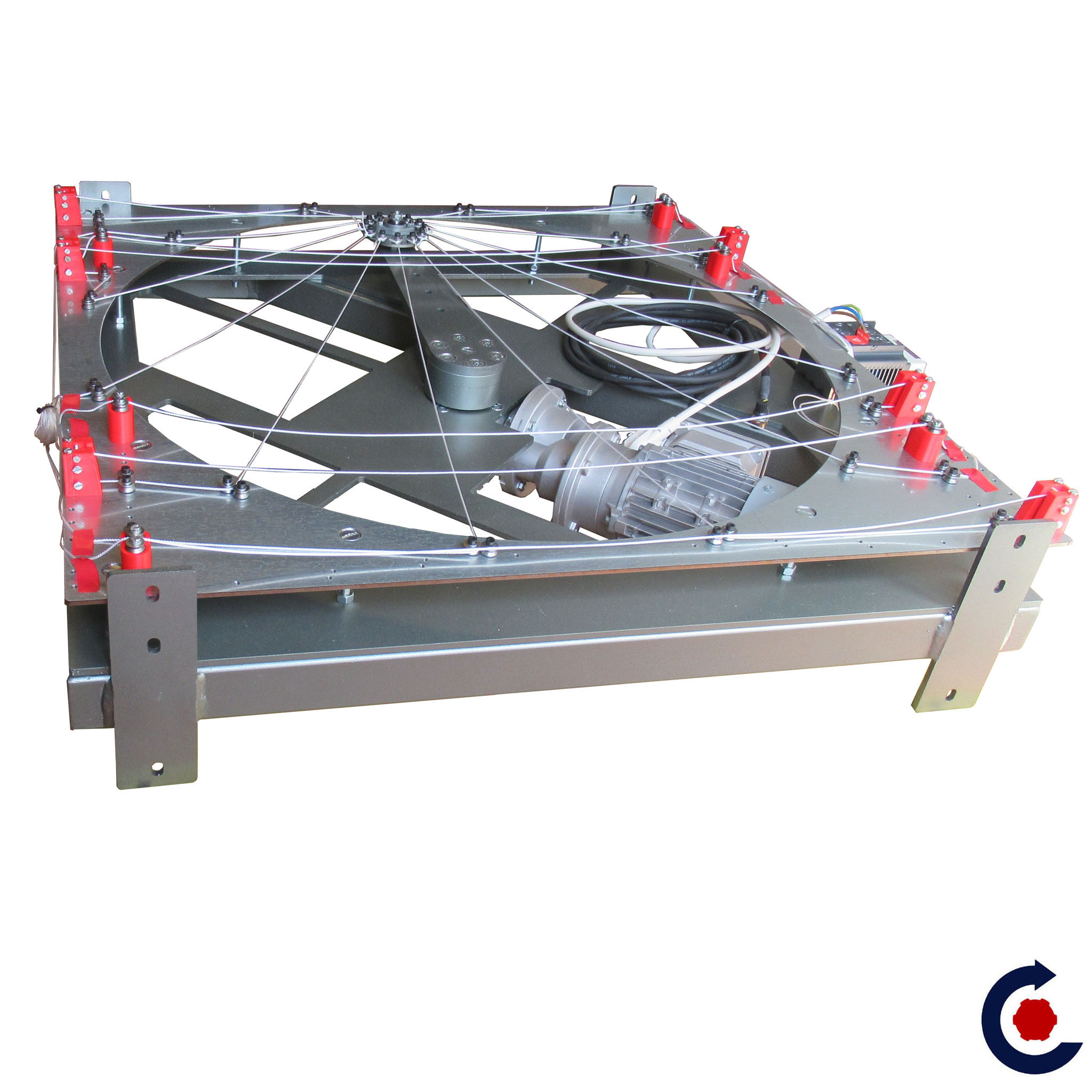

The MarioBox is a motorized puppeteer with 12 back-and-forth movements for 1kg sets.
The structure can be positioned on the floor or vertically, depending on the space available in the showcase.
One motor, 12 mo
- 12 pull cords
- Standard stroke : 600 mm
- Cycle : 20 s à 30 Hz (other speeds N.C.)
- Tri 230 industrial motor
- No disengagement
- Steel support structure : Lxlxh = 800 x 812 x 226 mm
- 4 mounting brackets
- 230 Vac / Tri 230 power supply included
- Integrated drive :Lxlxh= 110 x 72 x 142 mm
Characteristics
Documentations
| Charge capacité | : | 12 kg |
| Speed rotation | : | Variable speed tr/min |
| Power supply | : | Tri 230 Vac |
