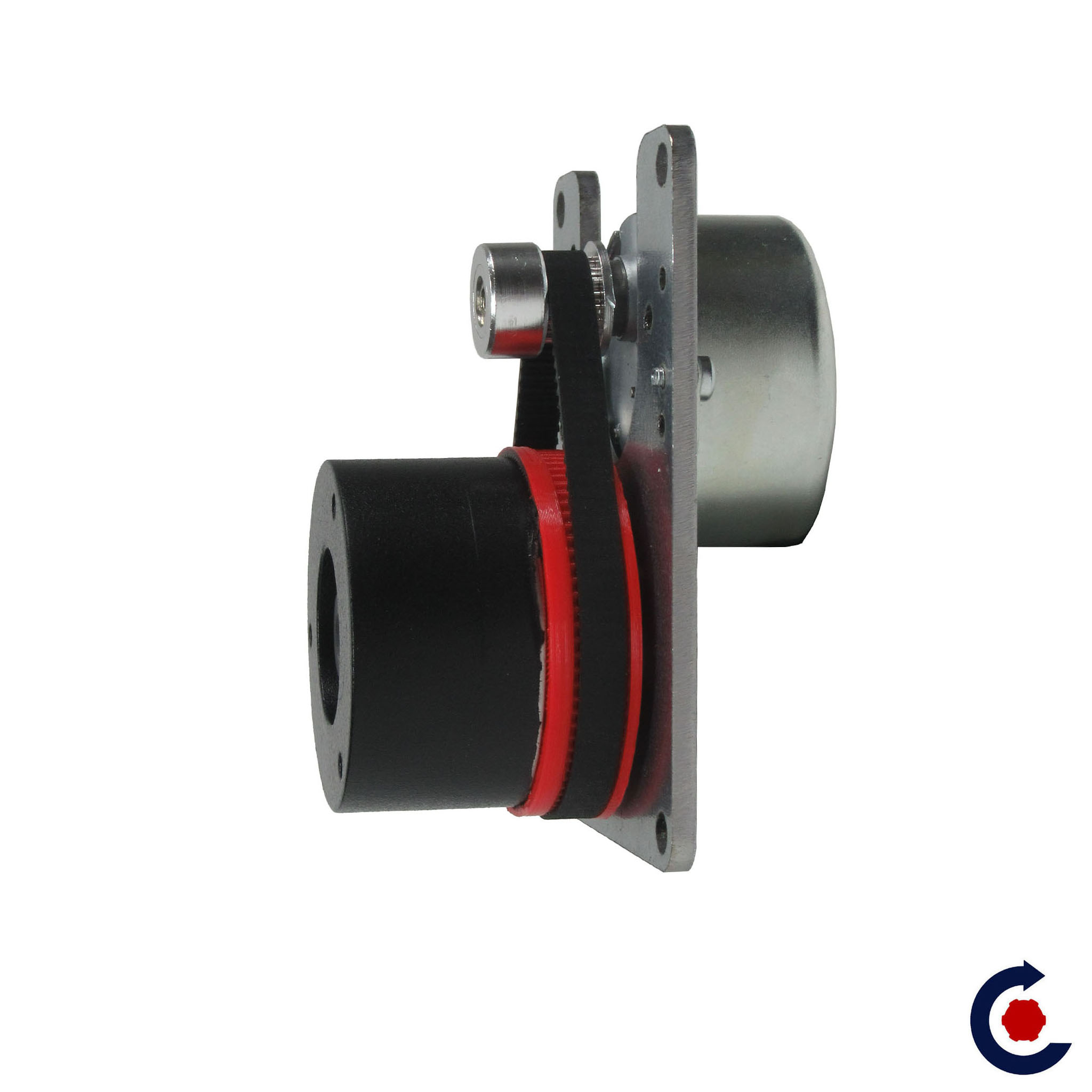

LUDIC motorised axis B5
2rpm speed
Ref. B5VY2
185.00 € HT
222.00 € TTC
This motor is ideal for animating lightweight objects, testing rotation speeds, or custom assemblies.
-
LUDIC range
- 2 rpm
- Clockwise seen from above

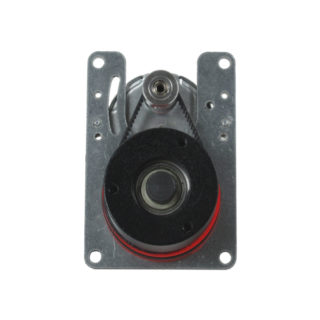

- Zinc plated steel plate : LxWxH 95 x 70 x 3 mm
- 4 fixing holes Ø 5 mm
- Hub Ø 50 mm 3 tapped holes M4
- Delivered not wired 230 Vac
- Indoor use
Max load at 2 rpm
Load < as speed increases
Wall position and load against the hub: 8 kg max
Wall position and load 10 cm from the hub: 5 kg max
Drive torque (unbalance) max:
1 kg at 9.5 cm (ex. 2.3 kg at 4 cm)
FAQ
The LUDIC B5VY1 motorised spindle is a motion control motor designed to rotate lightweight objects weighing up to 8 kg when mounted on a wall, at a speed of 1 revolutions per minute, rotating clockwise when viewed from the front.
Shop window displays
Point-of-sale displays and merchandising
Works of art
Christmas shop window displays
Point-of-sale displays and merchandising
Works of art
Christmas shop window displays
Simple mounting: the mounting plate has 4 smooth holes, allowing for quick and direct mounting onto your structure.
Central shaft: the shaft is fitted with 3 M4 threaded holes, designed to securely attach your rotating component.
Power supply: supplied ready for wiring; a power cable can be added as an option depending on your requirements.
Indoor use
Central shaft: the shaft is fitted with 3 M4 threaded holes, designed to securely attach your rotating component.
Power supply: supplied ready for wiring; a power cable can be added as an option depending on your requirements.
Indoor use
At our workshop in Chabeuil (France).
Characteristics
Documentations
| Charge capacité | : | 10 kg |
| Speed rotation | : | 2 rpm tr/min Variable speed tr/min |
| Sens of rotation | : | Clockwise |
| Power supply | : | 230 Vac |
| Ø rotating part | : | 48 mm |
| Lenght | : | 95 mm |
| Width | : | 70 mm |
| Height | : | 63 mm |
| Diameter | : | 48 mm |
| Destination | : | LUDIC |
| Classe | : | Punctual |
