LUDIC motorised axis B5
Variable speed 100 rpm
Ref. B5VPP
227.00 € HT
272.40 € TTC

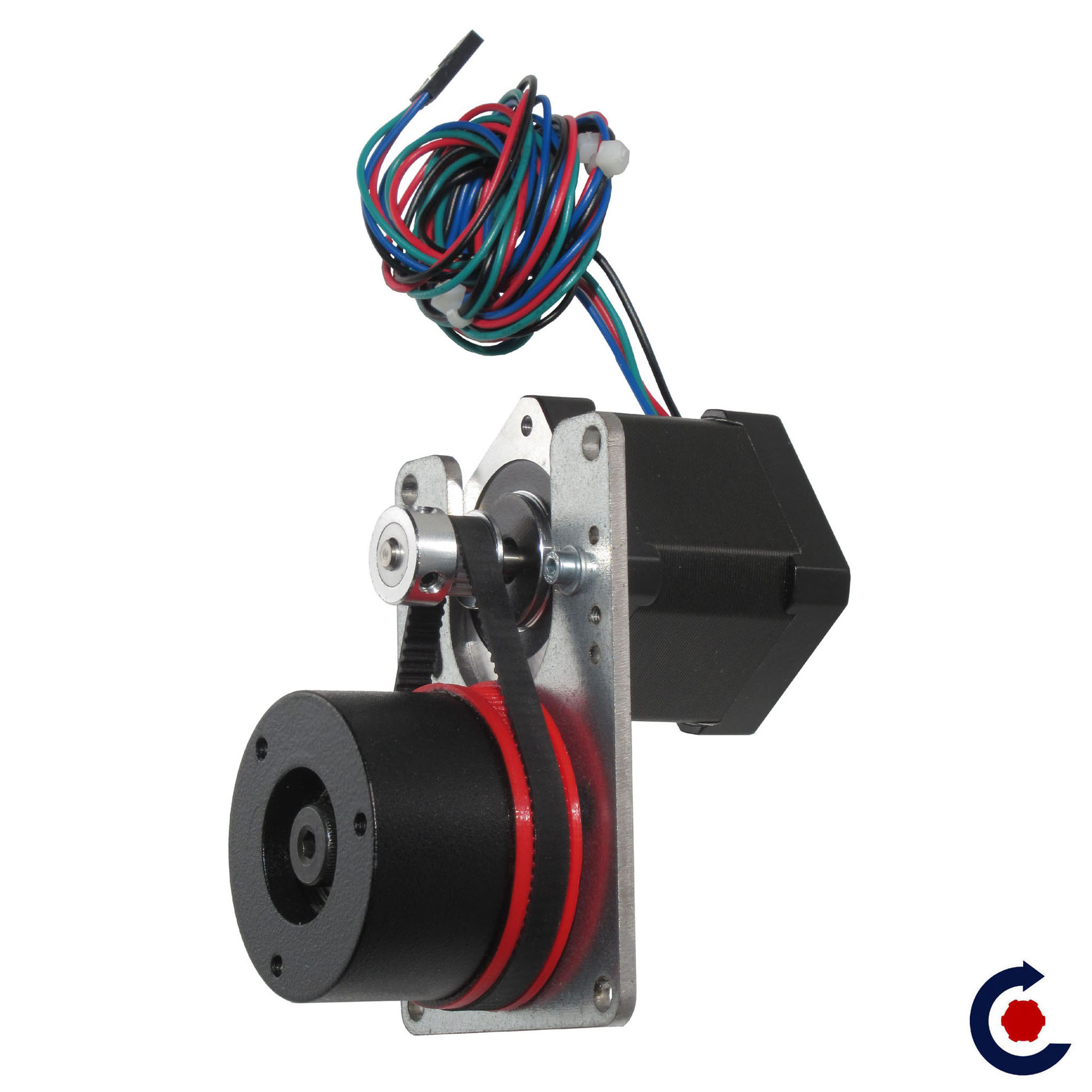

This motorised axis equipped with a NEMA bipolar stepper motor provides precise and controlled animation.
Can be integrated into automated scenarios. Compatible with control cards, sensors, or programmable systems to create interactive or triggered animations.
-
LUDIC range
- Up to 100 rpm with your own driver/program
- Clockwise or anti-clockwise depending on polarity
- Zinc plated steel plate : LxWxH 95 x 70 x 3 mm
- 4 fixing holes Ø 5 mm
- Hub Ø 50 mm 3 tapped holes M4
- Delivered without cables 12 Vdc
- Indoor use
Max load at 2 rpm
Load < as speed increases
Wall position and load against the hub: 8 kg max
Wall position and load 10 cm from the hub: 5 kg max
Drive torque (unbalance) max:
1 kg at 6 cm (ex. 1.5 kg at 4 cm)
FAQ
The LUDIC B5VY1 motorised spindle is a motion control motor designed to rotate lightweight objects weighing up to 8 kg when mounted on a wall, at a speed of 1 revolutions per minute, rotating clockwise when viewed from the front.
Shop window displays
Point-of-sale displays and merchandising
Works of art
Christmas shop window displays
Point-of-sale displays and merchandising
Works of art
Christmas shop window displays

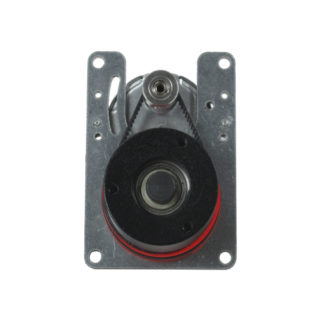

Simple mounting: the mounting plate has 4 smooth holes, allowing for quick and direct mounting onto your structure.
Central shaft: the shaft is fitted with 3 M4 threaded holes, designed to securely attach your rotating component.
Power supply: supplied ready for wiring; a power cable can be added as an option depending on your requirements.
Indoor use
Central shaft: the shaft is fitted with 3 M4 threaded holes, designed to securely attach your rotating component.
Power supply: supplied ready for wiring; a power cable can be added as an option depending on your requirements.
Indoor use
At our workshop in Chabeuil (France).
Characteristics
Documentations
| Charge capacité | : | 10 kg |
| Speed rotation | : | Variable speed tr/min |
| Sens of rotation | : | Two-way |
| Power supply | : | 12 Vdc |
| Ø rotating part | : | 48 mm |
| Lenght | : | 95 mm |
| Width | : | 70 mm |
| Height | : | 88 mm |
| Diameter | : | 48 mm |
| Destination | : | LUDIC |
| Classe | : | Excellent |
