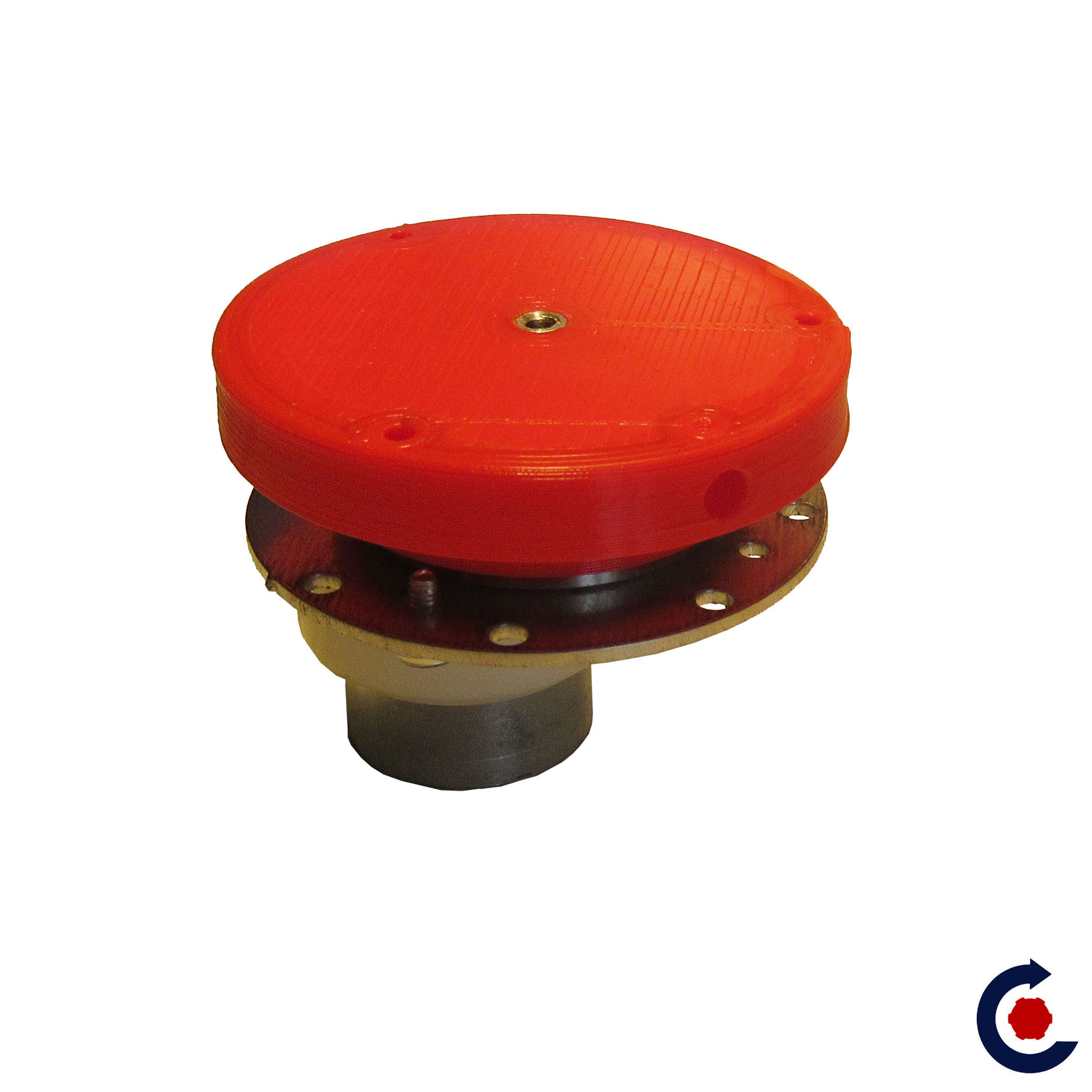

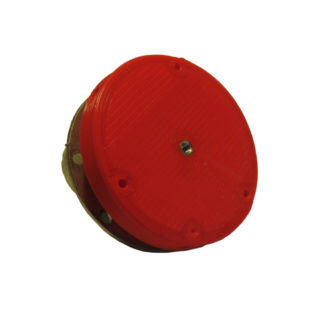

LUDIC B4 motorised axis
Variable speed 5 rpm
Ref. B4VR5
-3.85 € HT
73.15 € HT
87.78 € TTC
This mini motor for animation from the LUDIC range is designed to rotate light objects weighing up to 2 kg at a speed of 5 revolutions per minute, clockwise or anti-clockwise depending on the polarity. It is perfect for window displays, POS advertising, models, or temporary event installations.
-
LUDIC range
- For small volumes up to 2 kg at 5 rpm at 6 Vdc
- Clockwise or anti-clockwise depending on polarity
- Zinc plated steel plate : LxWxH 95 x 67 x 3 mm
- 6 fixing holes Ø 4 mm
- 3 smooth holes Ø 2 mm to fix your decoration on the hub
- Delivered uncabled
- Indoor use
- The 6 Vdc power supply is not supplied see here
- Cage mounting option here
Hub height Ø 58 mm (red part) : 18 mm
Height of support plate Ø 56 mm : 2 mm
Motor height Ø 32 mm : 20 mm
FAQ
The LUDIC B4 motorised spindle is a mini motor designed to rotate light objects weighing up to 2 kg at an adjustable speed of up to 5 revolutions per minute, either clockwise or anti-clockwise depending on the wiring polarity.
It is ideal for shop windows, point-of-sale displays, models, sets and event installations.
It is ideal for shop windows, point-of-sale displays, models, sets and event installations.
Shop window displays
Point-of-sale displays and merchandising
Scale models and miniature displays
Temporary event installations
Point-of-sale displays and merchandising
Scale models and miniature displays
Temporary event installations

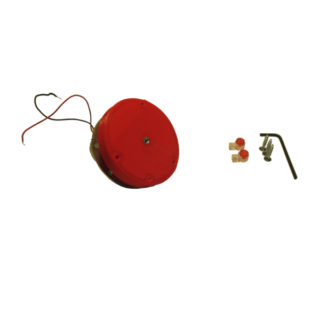

No, the 6 V DC motor is not supplied pre-wired.
It comes with crimp connectors, allowing you to easily connect your own DC cables.
This configuration offers complete freedom of installation:
cable length tailored to your setup,
choice of power supply location,
option to add a switch,
routing through a set or technical support structure.
For specific requirements, custom pre-wiring can be provided on request.
It comes with crimp connectors, allowing you to easily connect your own DC cables.
This configuration offers complete freedom of installation:
cable length tailored to your setup,
choice of power supply location,
option to add a switch,
routing through a set or technical support structure.
For specific requirements, custom pre-wiring can be provided on request.
Characteristics
| Speed rotation | : | Variable speed tr/min |
| Sens of rotation | : | Two-way |
| Power supply | : | Batteries |
| Ø rotating part | : | 48 mm |
| Height | : | 40 mm |
| Diameter | : | 58 mm |
| Destination | : | LUDIC |
| Classe | : | Eco |
