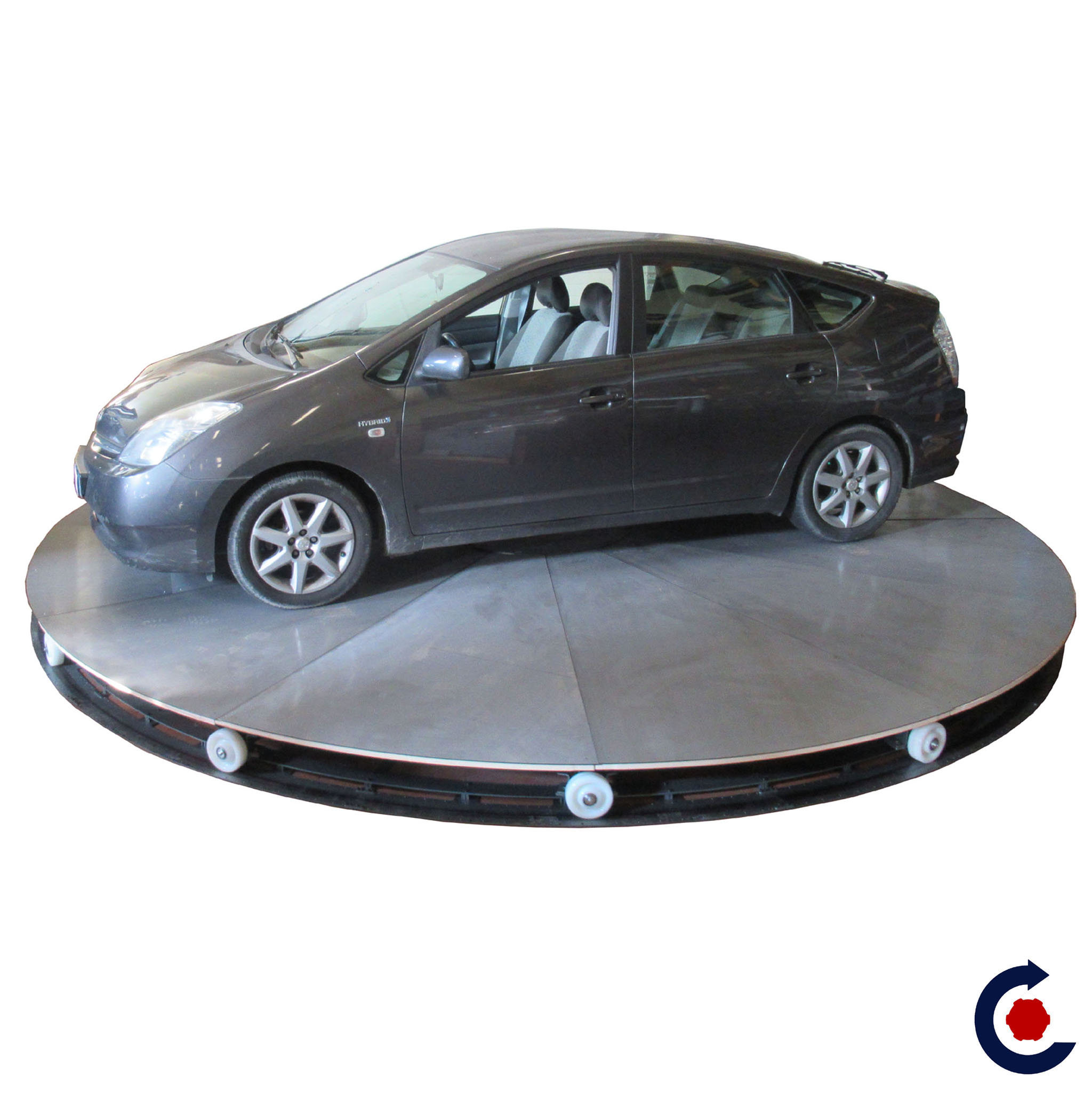

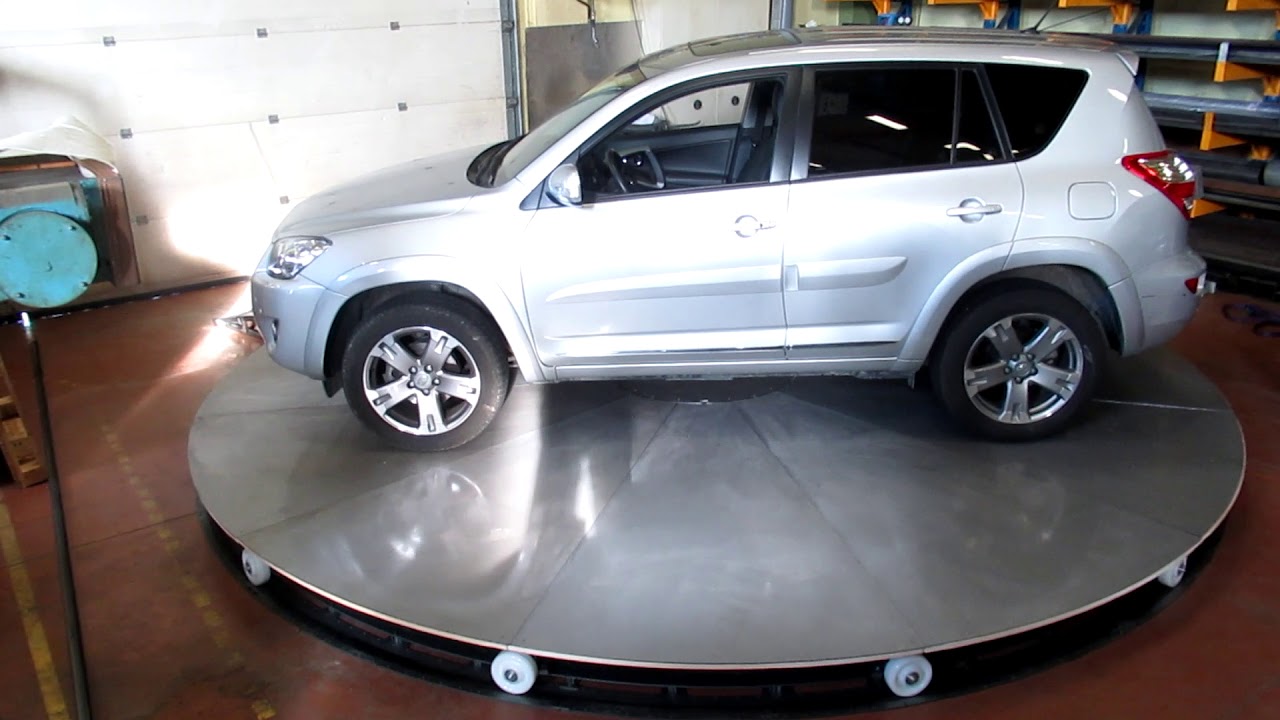

Rotating car platform
PLATON S range
5511 lb Ø 5 m 3R
Ref. PLAS5R3
20 403.00 € HT
24 483.60 € TTC

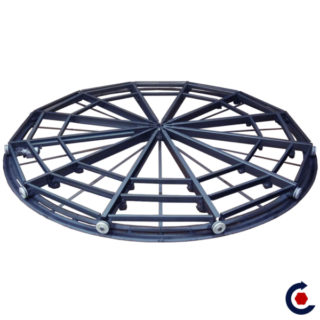

This Turntable is equipped with a triple reinforcement allowing the positioning of cars with different wheelbases and tracks. Max. load 1.9 t
The drive mechanism is efficient, no slipping and no adjustment to be made when changing vehicles.
- Track
- Safety clutch
- Delivered without floor, without cladding
- Supplied without 230 power supply you will find here
- Hammered painting
- Indoor use
-
PLATON S range

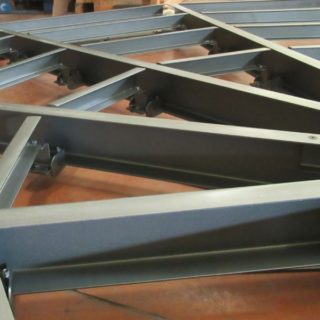

- Structural reinforcement 3 row
- variable speed up to 2 rpm at 50 hz
- Tri 230 power supply not included
Characteristics
| Charge capacité | : | 2500 kg |
| Speed rotation | : | Variable speed tr/min |
| Power supply | : | Tri 230 Vac |
| Ø rotating part | : | 5000 mm |
| Ø part base | : | 4500 mm |
| Height | : | 220 mm |
| Diameter | : | 5000 mm |
