LUDIC motorised axle
4.2 rpm SI
Ref. FdSB5V42SL
134.00 € HT
160.80 € TTC

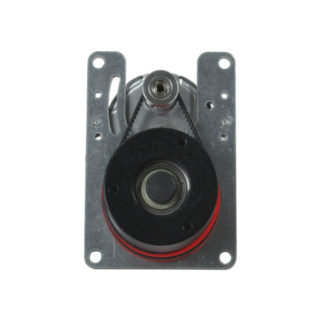

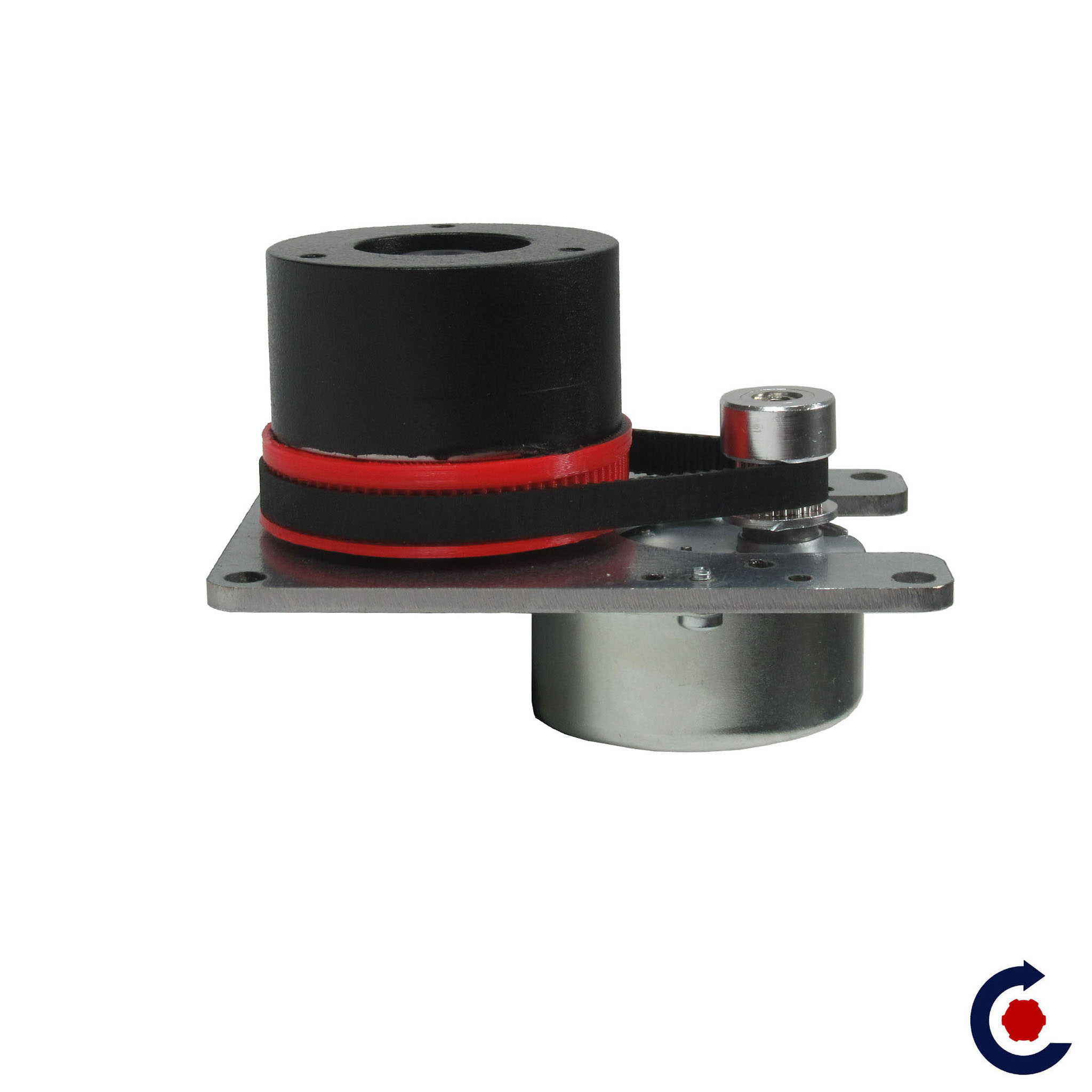

Motorised axis on a plate to be inserted in your structure. Allows you to motorise your decorations and displays.
-
LUDIC range
- Rotation speed 4.2 rpm
- Counter-clockwise seen from above
- Zinc plated steel plate : LxWxH 95 x 67 x 3 mm
- 4 fixing holes Ø 5 mm
- Hub Ø 50 mm 3 tapped holes M4
- Delivered without 230 Vac wiring
- Indoor use for short periods
Installed position and centred load: 22 lb max
Installed position and off-centre load 10 cm max: 11 lb max
Wall-mounted position and load against the hub: 11 lb max
Wall position and load 3 cm from the hub: 6 lb max
Max drive torque (unbalance) 2lb at 10 cm
FAQ
The LUDIC B5VY1 motorised spindle is a motion control motor designed to rotate lightweight objects weighing up to 8 kg when mounted on a wall, at a speed of 1 revolutions per minute, rotating clockwise when viewed from the front.
Shop window displays
Point-of-sale displays and merchandising
Works of art
Christmas shop window displays
Point-of-sale displays and merchandising
Works of art
Christmas shop window displays
Shop window displays
Point-of-sale displays and merchandising
Works of art
Christmas shop window displays
Point-of-sale displays and merchandising
Works of art
Christmas shop window displays
Simple mounting: the mounting plate has 4 smooth holes, allowing for quick and direct mounting onto your structure.
Central shaft: the shaft is fitted with 3 M4 threaded holes, designed to securely attach your rotating component.
Power supply: supplied ready for wiring; a power cable can be added as an option depending on your requirements.
Indoor use
Central shaft: the shaft is fitted with 3 M4 threaded holes, designed to securely attach your rotating component.
Power supply: supplied ready for wiring; a power cable can be added as an option depending on your requirements.
Indoor use
Simple mounting: the mounting plate has 4 smooth holes, allowing for quick and direct mounting onto your structure.
Central shaft: the shaft is fitted with 3 M4 threaded holes, designed to securely attach your rotating component.
Power supply: supplied ready for wiring; a power cable can be added as an option depending on your requirements.
Indoor use
Central shaft: the shaft is fitted with 3 M4 threaded holes, designed to securely attach your rotating component.
Power supply: supplied ready for wiring; a power cable can be added as an option depending on your requirements.
Indoor use
At our workshop in Chabeuil (France).
At our workshop in Chabeuil (France).
Characteristics
| Charge capacité | : | 10 kg |
| Speed rotation | : | 4 rpm tr/min |
| Sens of rotation | : | Counterclockwise |
| Power supply | : | 230 Vac |
| Ø rotating part | : | 48 mm |
| Lenght | : | 95 mm |
| Width | : | 67 mm |
| Height | : | 63 mm |
| Destination | : | LUDIC |
