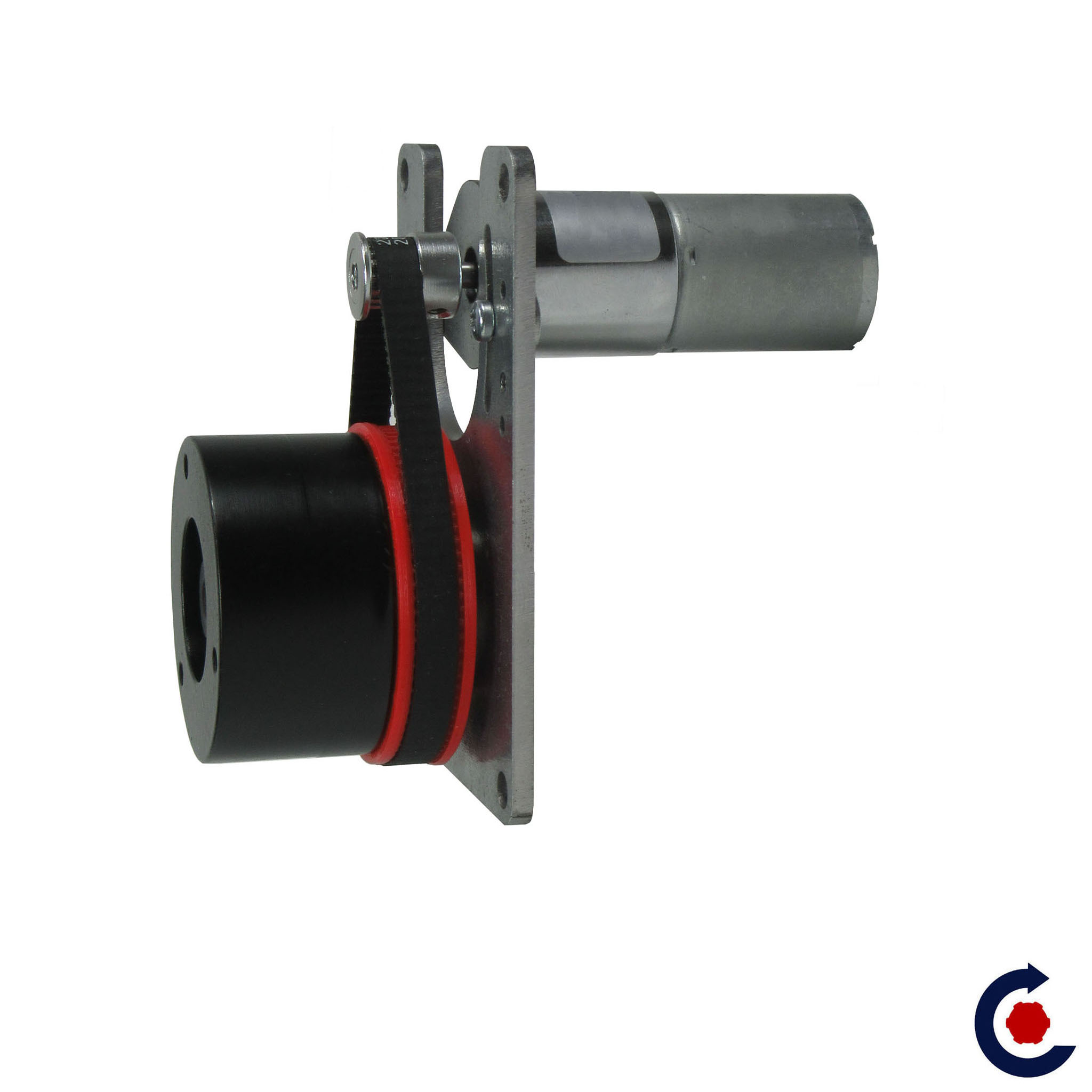

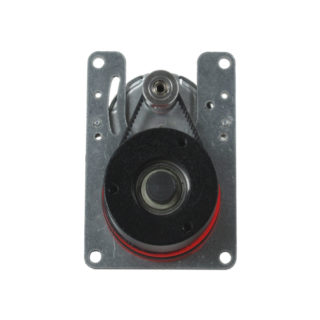

LUDIC motorised axis B5
Variable speed 12 rpm
Ref. B5VR50
215.00 € HT
258.00 € TTC
Motorised axis allowing you to create a prototype and define the desired speed by testing the renderings.
-
LUDIC range
- Up to 10 rpm at 12 Vdc
- Clockwise or anti-clockwise depending on polarity
- The 12 Vdc power supply is not supplied see here
- Zinc plated steel plate : LxWxH 95 x 70 x 3 mm
- 4 fixing holes Ø 5 mm
- Hub Ø 50 mm 3 tapped holes M4
- Delivered without cables12 Vdc
- Indoor use
Max load at 2 rpm
Load < as speed increases
Wall position and load against the hub: 8 kg max
Wall position and load 10 cm from the hub: 5 kg max
Drive torque (unbalance) max:
1 kg at 13.5 cm (ex. 3.2 kg at 4 cm)
Characteristics
Documentations
| Charge capacité | : | 10 kg |
| Speed rotation | : | Variable speed tr/min |
| Sens of rotation | : | Two-way |
| Power supply | : | 12 Vdc |
| Ø rotating part | : | 48 mm |
| Lenght | : | 95 mm |
| Width | : | 67 mm |
| Height | : | 103 mm |
