Turntable ECONOMIC B12S
30kg 2 rpm B32 D32
Ref. FdsP12SV20B32D32
401.00 € HT
481.20 € TTC

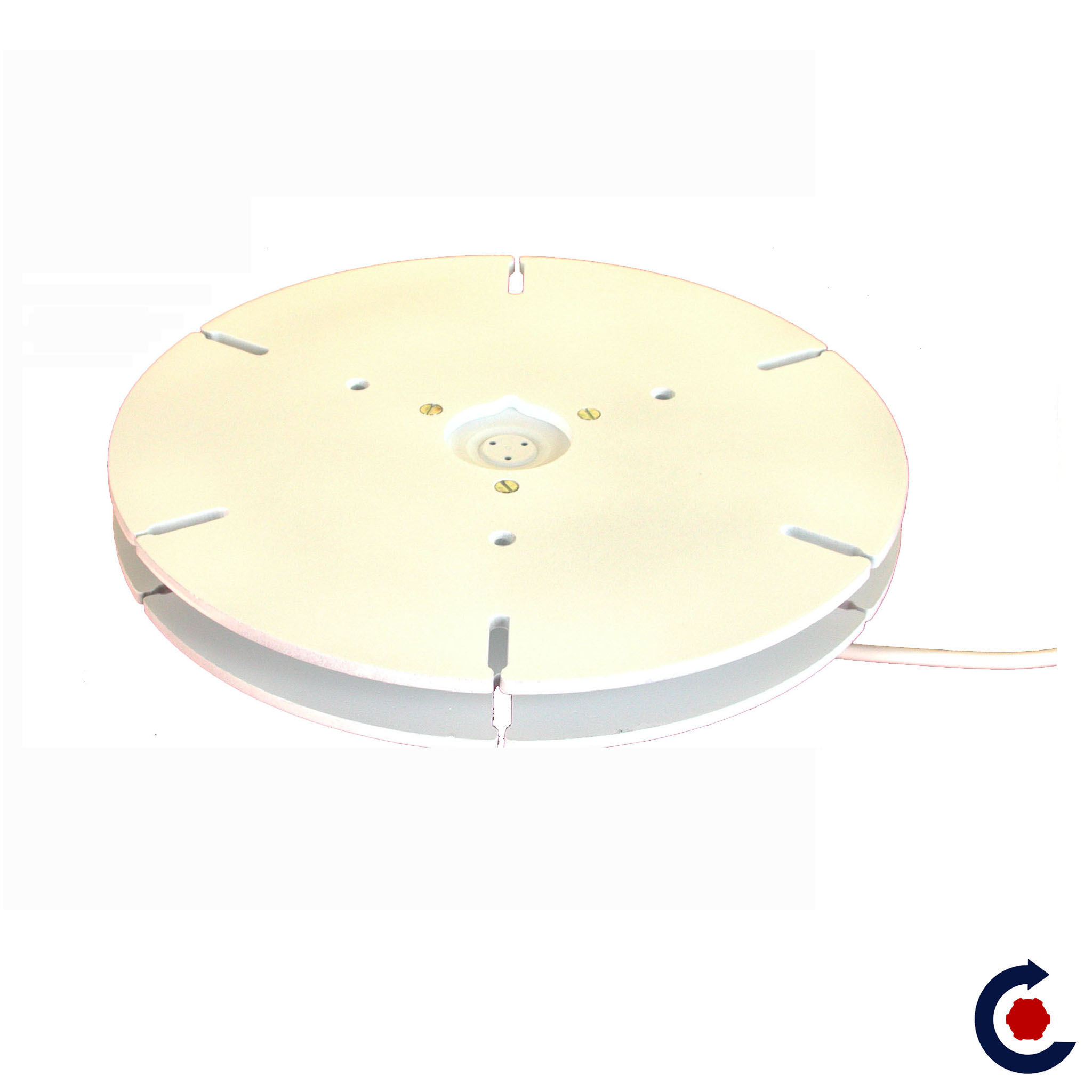

The ECONOMIC B12S Ø 320 mm motorized turntable rotates loads up to 30 kg at 2 rpm clockwise when viewed from above.
Its Ø 320 mm steel top and base provide a stable base and enlarged rotating surface for easier attachment of your own base or scenery.
Read more
Two steel plates for easier integration
This ECONOMIC B12S version features a steel rotating top and base of the same diameter. This configuration provides enlarged mounting surfaces both above and below the mechanism.
Useful installation information:
- Ø 320 × 6 mm steel rotating top;
- Ø 320 × 6 mm steel base;
- 3 M5 holes on the rotating section;
- Safety clutch;
- 230 Vac power cable;
- 2P+E plug with approximately 1.2 m cable;
- White painted finish;
- For indoor use.
Drive capacity must be checked according to the weight, diameter and height of the load, using the ECONOMIC B12 load chart.
FAQ
This version rotates at 2 rpm clockwise when viewed from above.
Yes. It is fitted with a 230 Vac power cable and 2P+E plug, with approximately 1.2 m of cable.
This version features a Ø 320 mm steel rotating top and base, each 6 mm thick, providing enlarged mounting surfaces.
Characteristics
Documentations
| Charge capacité | : | 30 kg |
| Speed rotation | : | 2 rpm tr/min |
| Sens of rotation | : | Clockwise |
| Power supply | : | 230 Vac |
| Ø rotating part | : | 320 mm |
| Ø part base | : | 320 mm |
| Height | : | 72 mm |
| Diameter | : | 320 mm |
| Destination | : | ECONOMIC |
| Classe | : | Reliable |
