LUDIC B6 motorised axle
step by step 65 rpm
Ref. B6VPP
259.00 € HT
310.80 € TTC

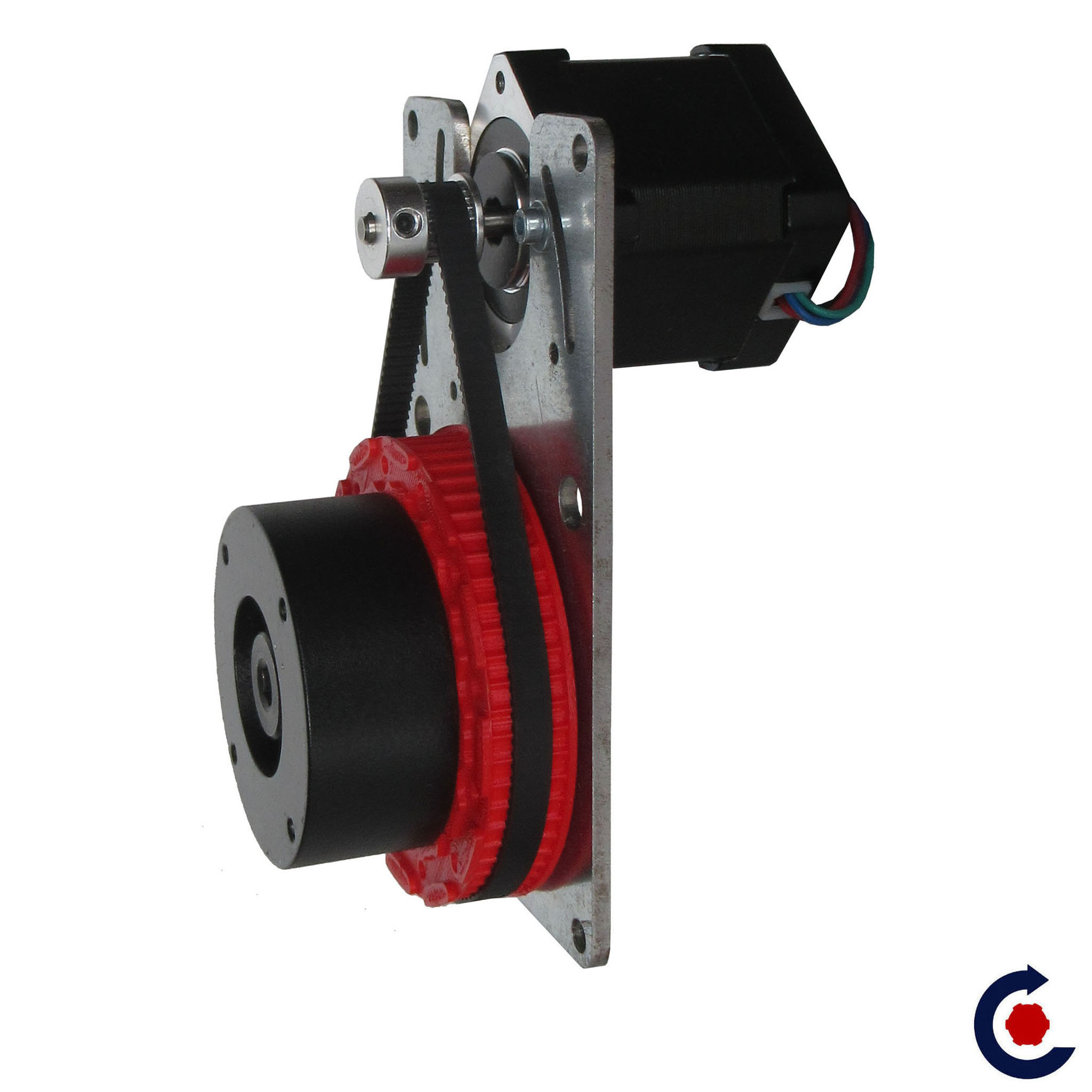

This motorised hub incorporates a bipolar NEMA stepper motor, ensuring optimal precision in movement.
This motorised module integrates easily into automated environments. Its compatibility with a wide range of controllers, sensors and programmable systems allows you to design interactive animations or animations triggered by customised scenarios.
For simplified implementation, our optional driver boxes (VARPP references) ensure quick and reliable implementation.
-
LUDIC range
- Variable speed up to 65 rpm with your own driver/program
- Direction of rotation according to the polarity of your wiring
- Galvanized steel plate: Lxwxh 130 x 85 x 3 mm
- 4 fixing holes Ø 5 mm
- Hub Ø 58 mm
- 4 tapped holes M4 Ø 50 mm
- Delivered unwired 12 Vdc
- Delivered without driver/control program
- Indoor use
Max load for standard speed
Load > as speed increases
Wall position and load against the hub: 16 kg max
Wall position and load 10 cm from the hub: 10 kg max
Drive torque (unbalance) max:
1 kg at 10 cm (ex. 2.5 kg at 4 cm)
FAQ
The LUDIC B5VY1 motorised spindle is a motion control motor designed to rotate lightweight objects weighing up to 8 kg when mounted on a wall, at a speed of 1 revolutions per minute, rotating clockwise when viewed from the front.
Shop window displays
Point-of-sale displays and merchandising
Works of art
Christmas shop window displays
Point-of-sale displays and merchandising
Works of art
Christmas shop window displays

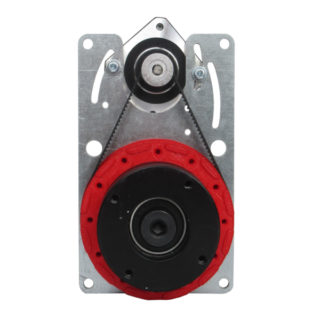

Simple mounting: the mounting plate has 4 smooth holes, allowing for quick and direct mounting onto your structure.
Central shaft: the shaft is fitted with 3 M4 threaded holes, designed to securely attach your rotating component.
Power supply: supplied ready for wiring; a power cable can be added as an option depending on your requirements.
Indoor use
Central shaft: the shaft is fitted with 3 M4 threaded holes, designed to securely attach your rotating component.
Power supply: supplied ready for wiring; a power cable can be added as an option depending on your requirements.
Indoor use
At our workshop in Chabeuil (France).
Characteristics
Documentations
| Charge capacité | : | 15 kg |
| Speed rotation | : | Variable speed tr/min |
| Sens of rotation | : | Two-way |
| Power supply | : | 12 Vdc |
| Lenght | : | 130 mm |
| Width | : | 85 mm |
| Height | : | 91 mm |
| Diameter | : | 58 mm |
| Destination | : | LUDIC |
| Classe | : | Excellent |
