Rotating Stage Magnifier
ep. 100 Ø 1.5 m
Ref. E100
869.00 € HT
1 042.80 € TTC
Easily extend your turntable surface
The E100 extension is a metal structure designed to be fitted onto the turntables in the VOLUMIC range. It increases the usable diameter of the turntable to accommodate larger objects, sets or displays requiring additional space.
Thanks to its centring pins, installation is straightforward and ensures precise positioning on the existing turntable. Supplied without a floor panel, the structure can be fitted with the appropriate covering for your project.

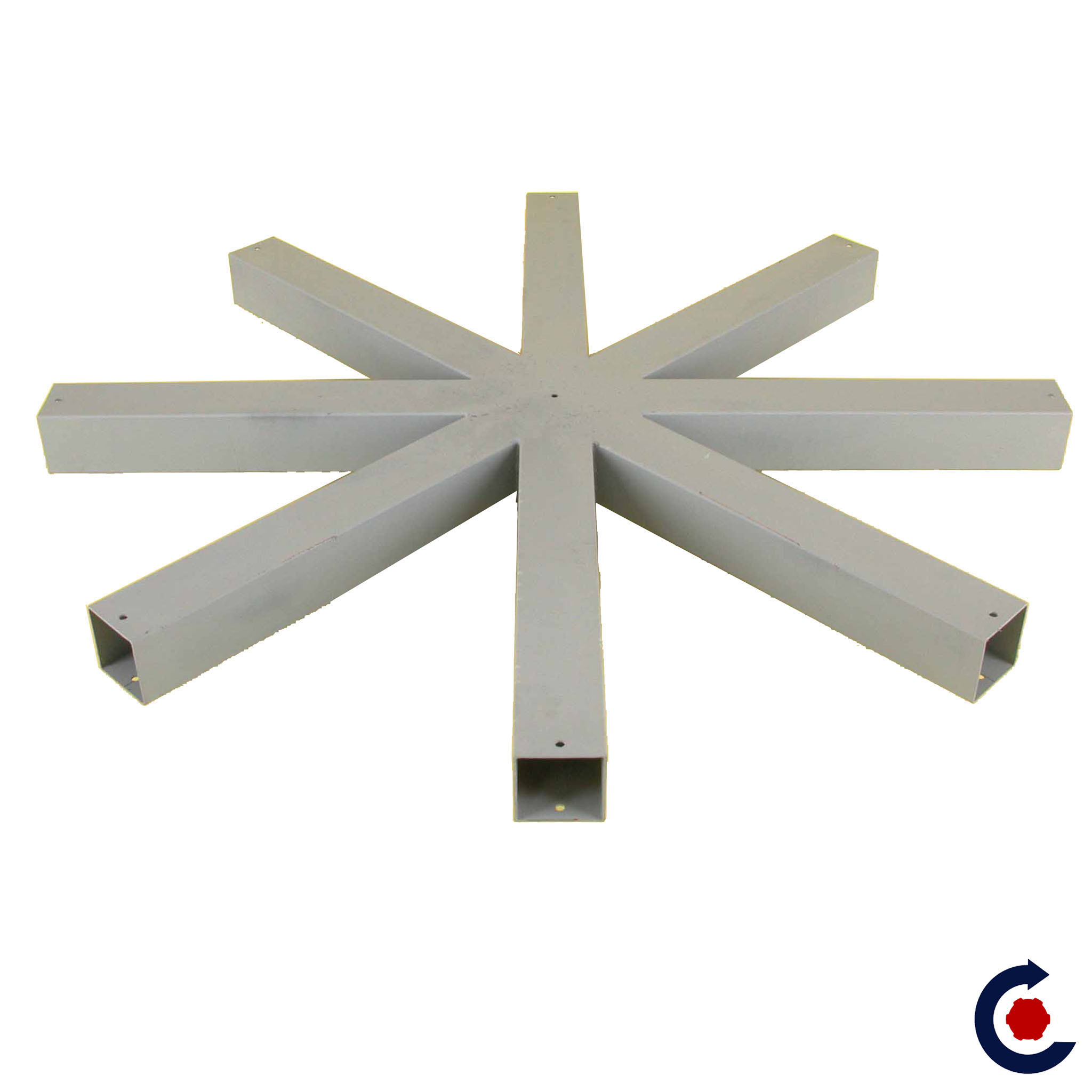

Made from steel with a star-shaped structure comprising 100 x 100 mm square tubes, this extension offers a maximum distributed load capacity of 4 tonnes for professional and event applications.
- Diameter 1,500 mm
- Height 100 mm
- Star-shaped structure made from 100 x 100 mm square tubing
- Centring pins
- For indoor use
- Supplied without a floor panel
- Compatible with VOLUMIC
FAQ
It increases the usable surface area of a turntable from the VOLUMIC PR300 and PR380 ranges, so that it can accommodate bulkier loads or sets.
The ÉTOILE extension increases the usable surface area of a turntable from the VOLUMIC range, enabling it to accommodate larger objects, sets, display stands or scenographic elements that require more space than the original turntable provides.
The extension allows the working surface of the platform to be increased only when necessary. This solution avoids the need to purchase a larger platform and helps to optimise the overall project budget.
The unit is fitted with centring pins that allow for precise and rapid positioning on the turntable to ensure the structure is perfectly centred.
No. The frame is supplied without a floor so that you can install the flooring best suited to your project.
A modular solution allows the rotating surface to be adapted to each project. A single turntable can thus accommodate different extensions depending on the dimensions of the products, sets, vehicles or equipment to be displayed. This flexibility minimises investment costs, facilitates storage and optimises logistics.
Yes. During loading, set-up or installation of the scenery, it is possible to access the structure once the stabilising wedges provided for this purpose have been fitted. These wedges prevent any risk of tipping and must be removed before the turntable is rotated. Instructions for use are set out in the manual supplied.
The unit is fitted with centring pins to ensure precise positioning on the turntable. Once in place, it is ready for use straight away.
No. The ÉTOILE extension is an add-on structure designed to be fitted onto a compatible turntable from the VOLUMIC range. It does not operate on its own.
Yes. The structure is designed to allow for assembly, loading and the installation of backdrops. To ensure the stability of the unit, wedges must be positioned before any work is carried out and removed before the unit is set in motion. Instructions for use are set out in detail in the manual provided.
ÉTOILE enlargers are used for:
product display stands;
theatre sets;
photo and video studios;
trade fairs and exhibitions;
museums;
commercial events;
technical and industrial presentations.
product display stands;
theatre sets;
photo and video studios;
trade fairs and exhibitions;
museums;
commercial events;
technical and industrial presentations.
Characteristics
| Ø rotating part | : | 1500 mm |
| Height | : | 100 mm |
| Destination | : | VOLUMIC |
| Tube size | : | 100 mm |
