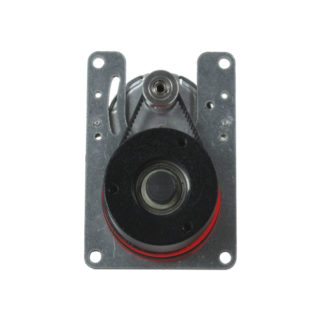

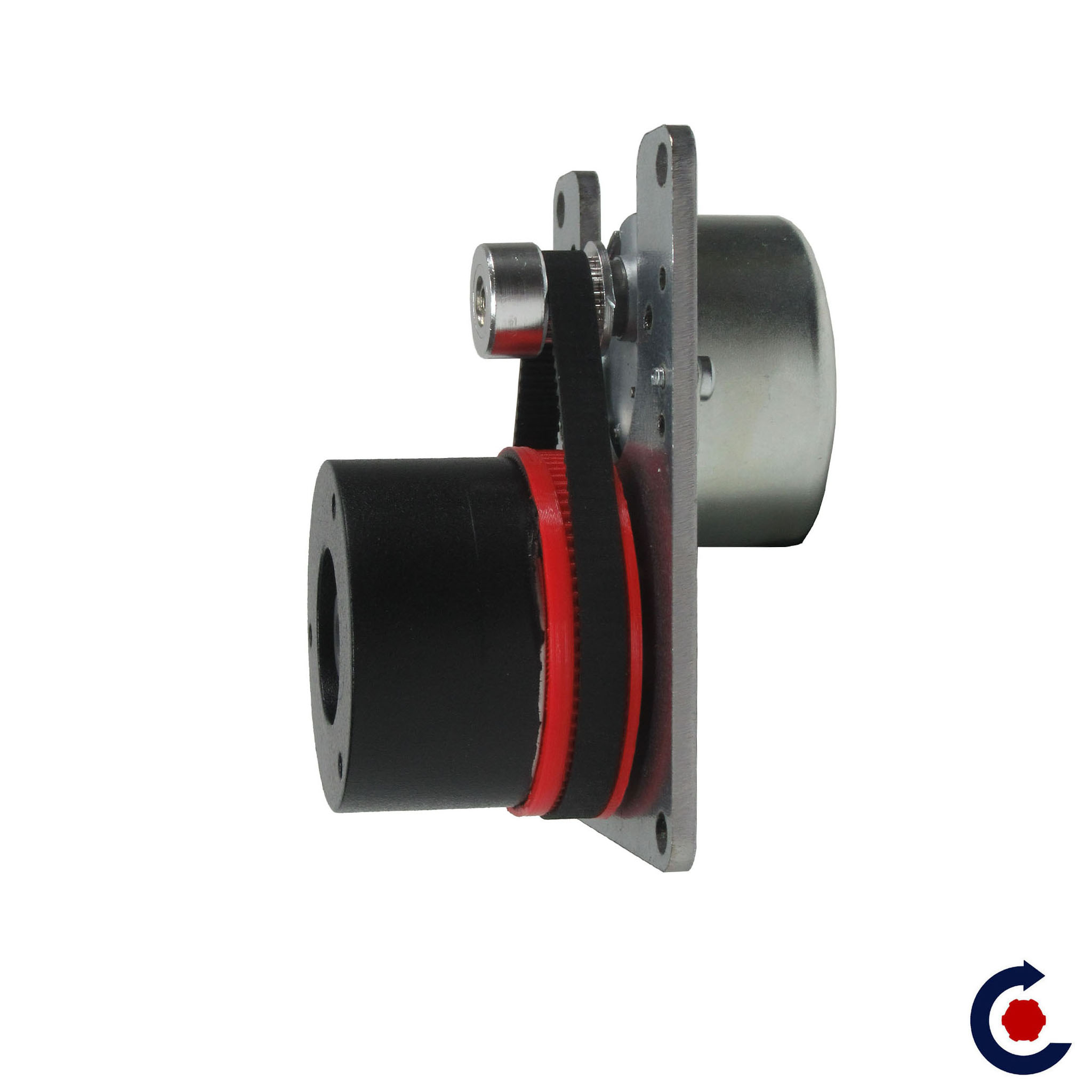

LUDIC motorised axis B5
1rpm speed
Ref. B5VY1

FANTASTIC MOTORS ® deco motor installed or wall mounted
FANTASTIC MOTORS ® deco motor installed or wall mounted
LUDIC motorised axis B51rpm speed
185.00 € HT
222.00 € TTC
Quantity
under 15 day(s)
Add to cart

Motorised axis allowing you to create a prototype and define the desired speed by testing the renderings.

  • LUDIC range

  • 1 rpm
  • Clockwise seen from above
  • Zinc plated steel plate : LxWxH 95 x 70 x 3 mm
  • 4 fixing holes Ø 5 mm
  • Hub Ø 50 mm 3 tapped holes M4
  • Delivered not wired 230 Vac
  • Indoor use

Max load at 2 rpm
Load < as speed increases

Wall position and load against the hub: 8 kg max
Wall position and load 10 cm from the hub: 5 kg max

Drive torque (unbalance) max:
1 kg at 13.5 cm (ex. 3.3 kg at 4 cm)

Characteristics
Documentations
Charge capacité  :  10 kg
Speed rotation  :  1 rpm tr/min
Variable speed tr/min
Sens of rotation  :  Clockwise
Power supply  :  230 Vac
Ø rotating part  :  48 mm
Destination  :  LUDIC
Classe  :  Punctual
