LUDIC B7 motorised axle
step by step 55 rpm
Ref. B7VPP

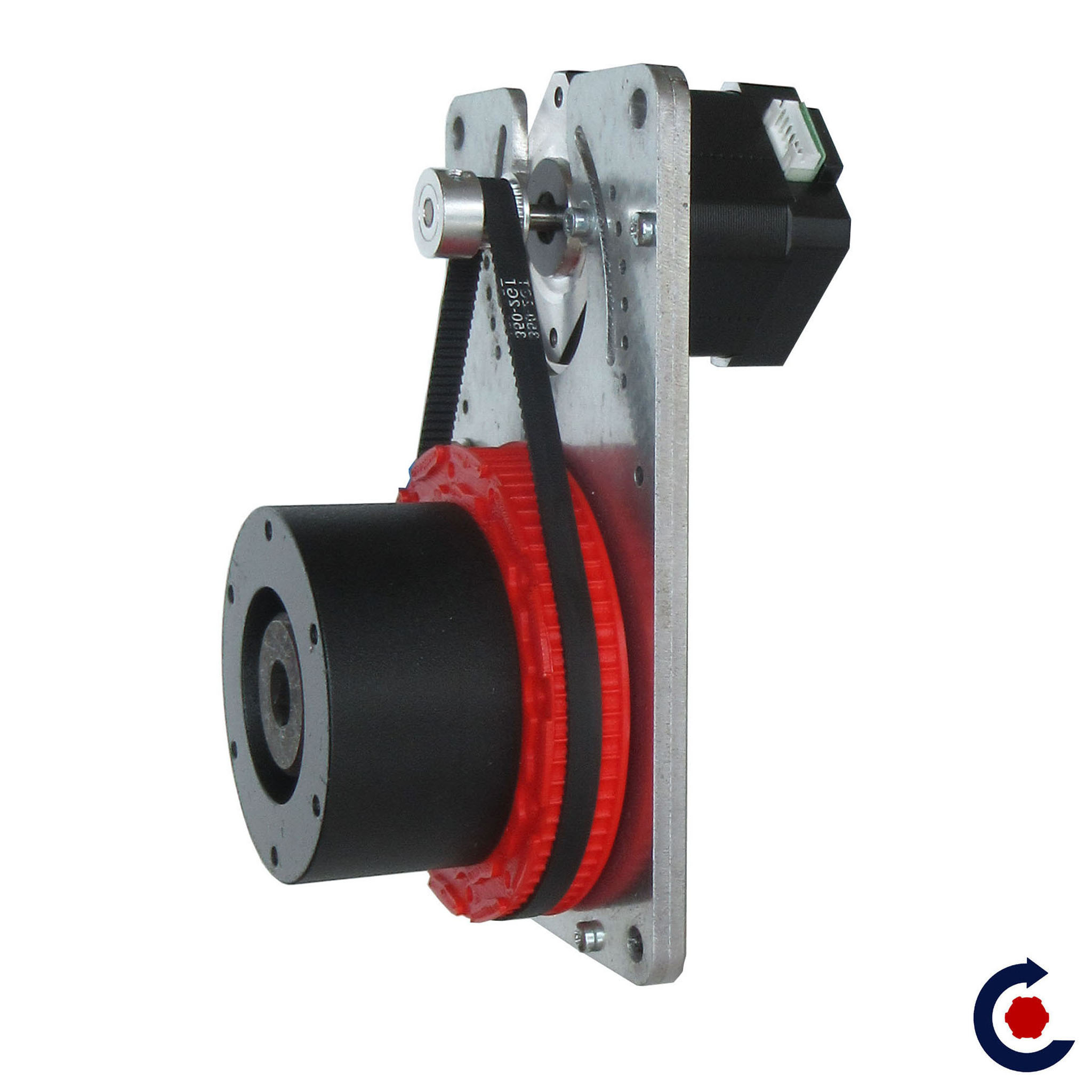

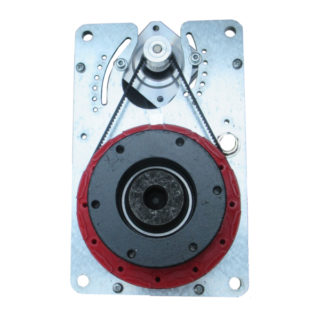

LUDIC motorized shaft with black hub, red toothed wheel, black belt, metal mounting plate and black stepper motor
LUDIC motorized shaft with black hub, red toothed wheel, black belt, metal mounting plate and black stepper motor
Motorised axis wall mounted step by step
330.00 € HT
396.00 € TTC
Quantity
in stock
Add to cart

The LUDIC stepper motorized shaft is designed to rotate decorations and POS displays in surface-mounted or wall-mounted installations with precise motion control.



It reaches up to 55 rpm with your own driver and program and supports up to 25 kg when wall-mounted, with the load against the hub.



Read more



A stepper motorized shaft for controlled animations

The LUDIC motorized shaft features a stepper motor that allows speed and movement to be controlled using your own driver and program. It can be used in surface-mounted or wall-mounted installations to rotate decorations or POS displays.

Main features

  • Variable speed up to 55 rpm with your own driver / program
  • Rotation direction depending on wiring polarity
  • Supplied unwired for 12 Vdc
  • Supplied without driver or control program
  • For indoor use
  • Higher permissible load as speed increases

Mechanical interface

  • 160 × 100 × 6 mm zinc-plated steel mounting plate
  • 4 Ø 6.5 mm mounting holes
  • Ø 68 mm hub
  • 6 M4 threaded holes on a Ø 60 mm pitch circle

Wall-mounted load capacities

Maximum loads are specified for a standard speed:

  • Load against the hub: 25 kg max
  • Load 10 cm from the hub: 15 kg max
  • Maximum unbalanced load: 1 kg at 10 cm, for example 2.5 kg at 4 cm

FAQ

It is designed to rotate decorations and POS displays at variable speeds up to 55 rpm, controlled using your own driver and program.
This version can be used surface-mounted or wall-mounted. When wall-mounted, it supports up to 25 kg with the load against the hub and 15 kg with the load positioned 10 cm from the hub.
Characteristics
Documentations
Charge capacité  :  30 kg
Speed rotation  :  Variable speed tr/min
Sens of rotation  :  Two-way
Power supply  :  12 Vdc
Lenght  :  130 mm
Width  :  100 mm
Height  :  101 mm
Destination  :  LUDIC
Classe  :  Premium
