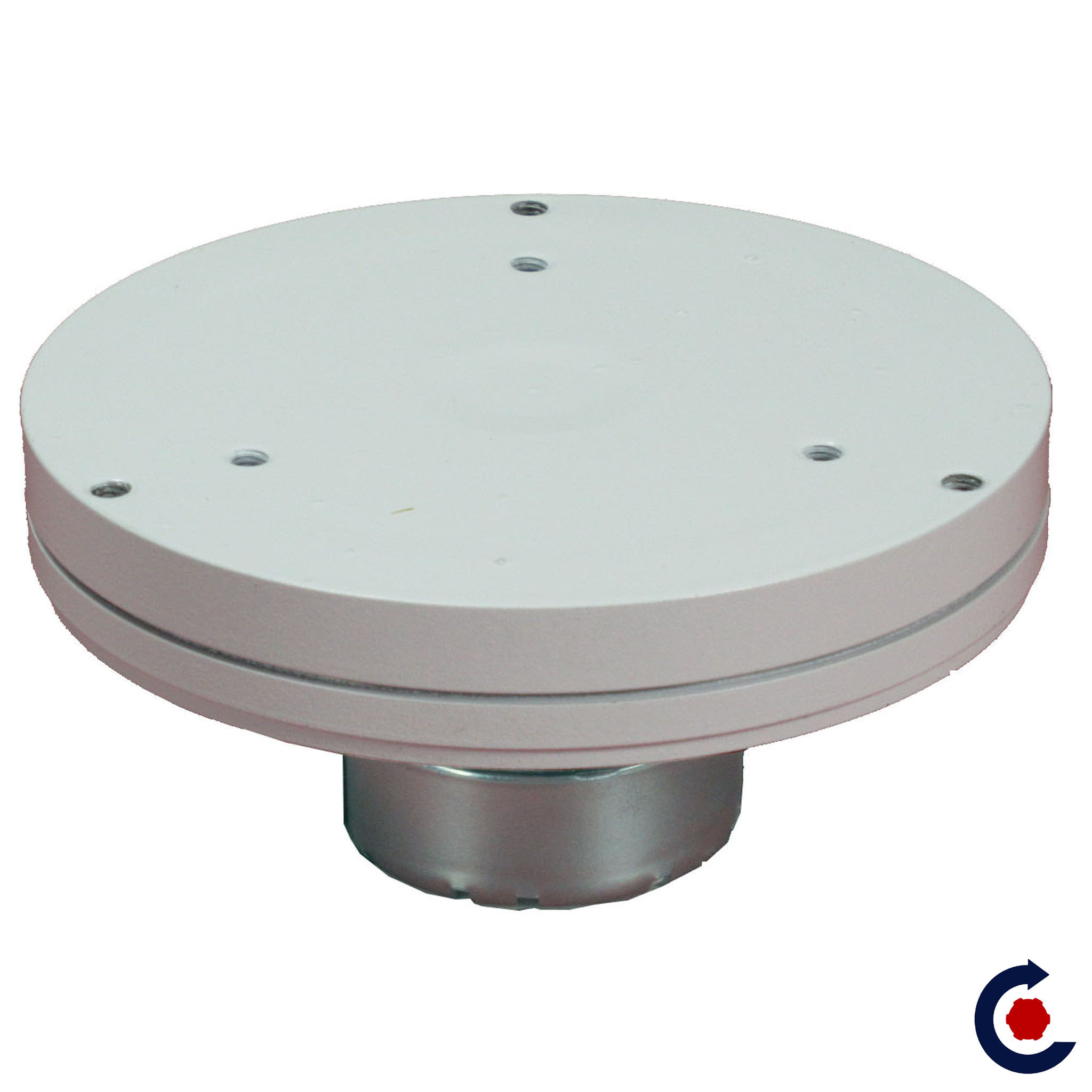

Motorized turnatble 176 lb
ECONOMIC range
2rpm Double direction
Ref. B12LV2DS
259.00 € HT
310.80 € TTC
Integrated motor unit: to be wired directly into your structure for a customised installation.
-
-
ECONOMIC range

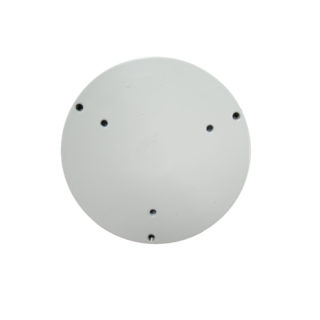

- Rotating part Ø 118 mm
- 3 M5 holes on rotating part
- 3 M5 holes on fixed part
- 2 rpm
- Rotation speed depending on capacitor wiring
- Capa 0.12 µF (fournie)
- Max 80 kg
- Safety release
- Supplied unwired 230 Vac
- White paint finish
- For indoor use
-
- You want a power cord here
- Check the drive capacity of this range based on the weight, diameter (Ø) and height of your load. Refer to the chart available in the ‘Documentation’ section, accessible under the photo thumbnails on this page.
FAQ
The motor unit can drive a maximum load of 80 kg. Drive capacity must also be checked according to the weight, diameter and height of the load using the ECONOMIC B12 load chart.
The ECONOMIC B12 motor unit is designed to provide motorized rotation for direct integration into a structure and can drive loads up to 80 kg.
Several versions are available with different speeds and rotation-direction configurations. The required drive capacity must also be taken into account when selecting the appropriate version.
Check the drive capacity of this range according to the weight, diameter (Ø) and height of your load. Refer to the load chart available in the “Documentation” section below the product image thumbnails.
Check the drive capacity of this range according to the weight, diameter (Ø) and height of your load. Refer to the load chart available in the “Documentation” section below the product image thumbnails.
Characteristics
Documentations
| Charge capacité | : | 80 kg |
| Speed rotation | : | 2 rpm tr/min |
| Sens of rotation | : | Two-way |
| Power supply | : | 230 Vac |
| Ø rotating part | : | 120 mm |
| Ø part base | : | 120 mm |
| Height | : | 71 mm |
| Diameter | : | 118 mm |
| Destination | : | ECONOMIC |
| Classe | : | Reliable |
