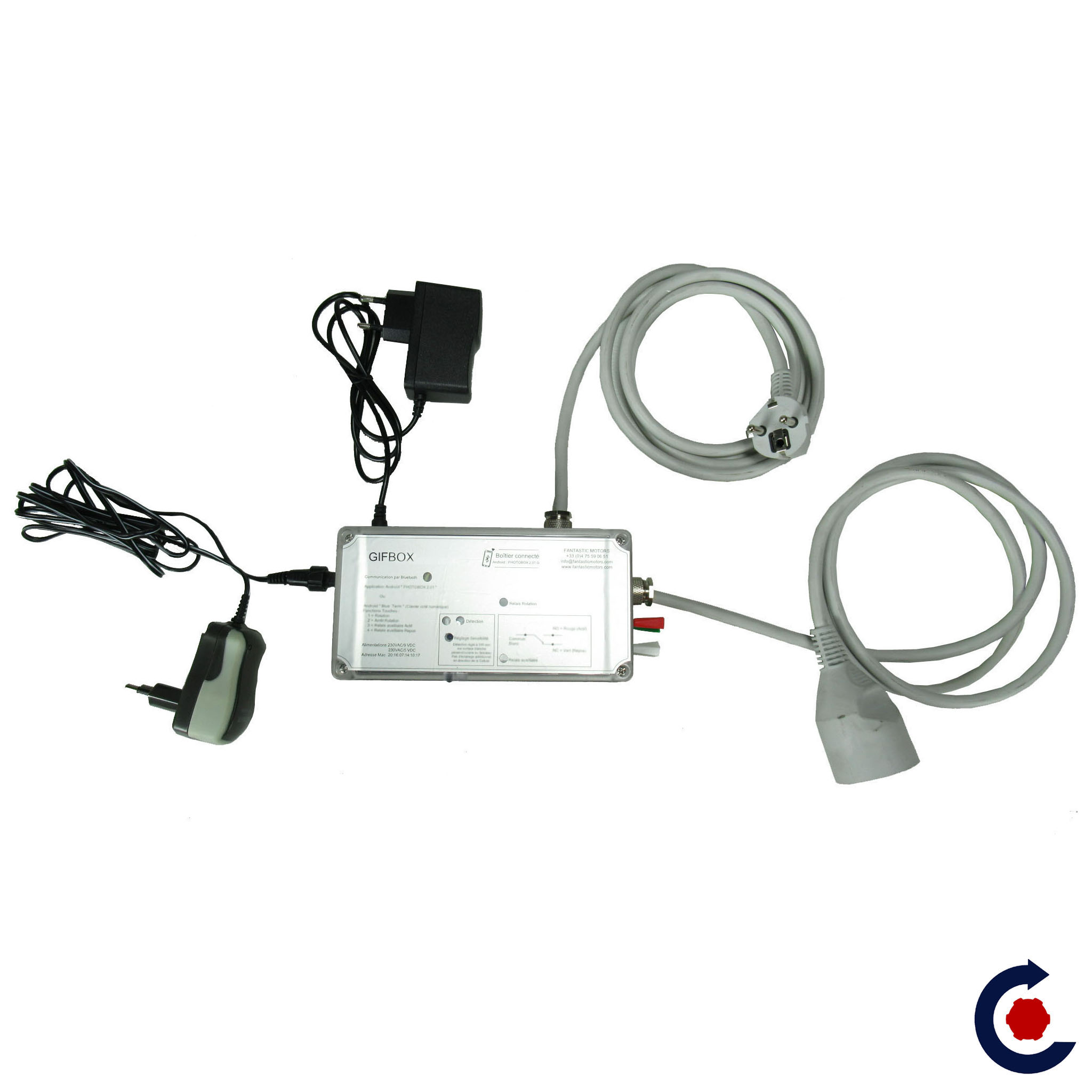

Android connected box
360° animated GIF shooting

Ref. GIFBOX

Allows you to control a turntable or spinning platform to create animated 360 ° shooting.

Motor Compatibility :

• Maximum intensity = 2A from 100 to 230Vac.
• With motor powered directly in 100 to 230 Vac.
• With any motor powered via a dimmer or a 100 to 230 Vac supply, max. 2A (you will need to adapt the control parameters of your motors and drives, Speed, Acceleration ramps and deceleration so that detections have time to take place (nc)).
• The housing parameters are compatible with rotation speeds of around 1 to 3 rpm.

Operation.

• The housing encloses the detection cell which is actuated by the reflective stops (adjustable threshold). The housing is placed a few centimeters from the passage of stops.
• To switch to the next position : either by flash of the camera or Android application.
• The Androïd application also allows: continuous rotation, On / Off, control of another function under 230 Vac max 2 A
• Free Android application provided by a download link that will be communicated to you.
