Platinum 360 ° DIY Kit
FANTASTIC 150kg 500W
Ref. B16LKC1

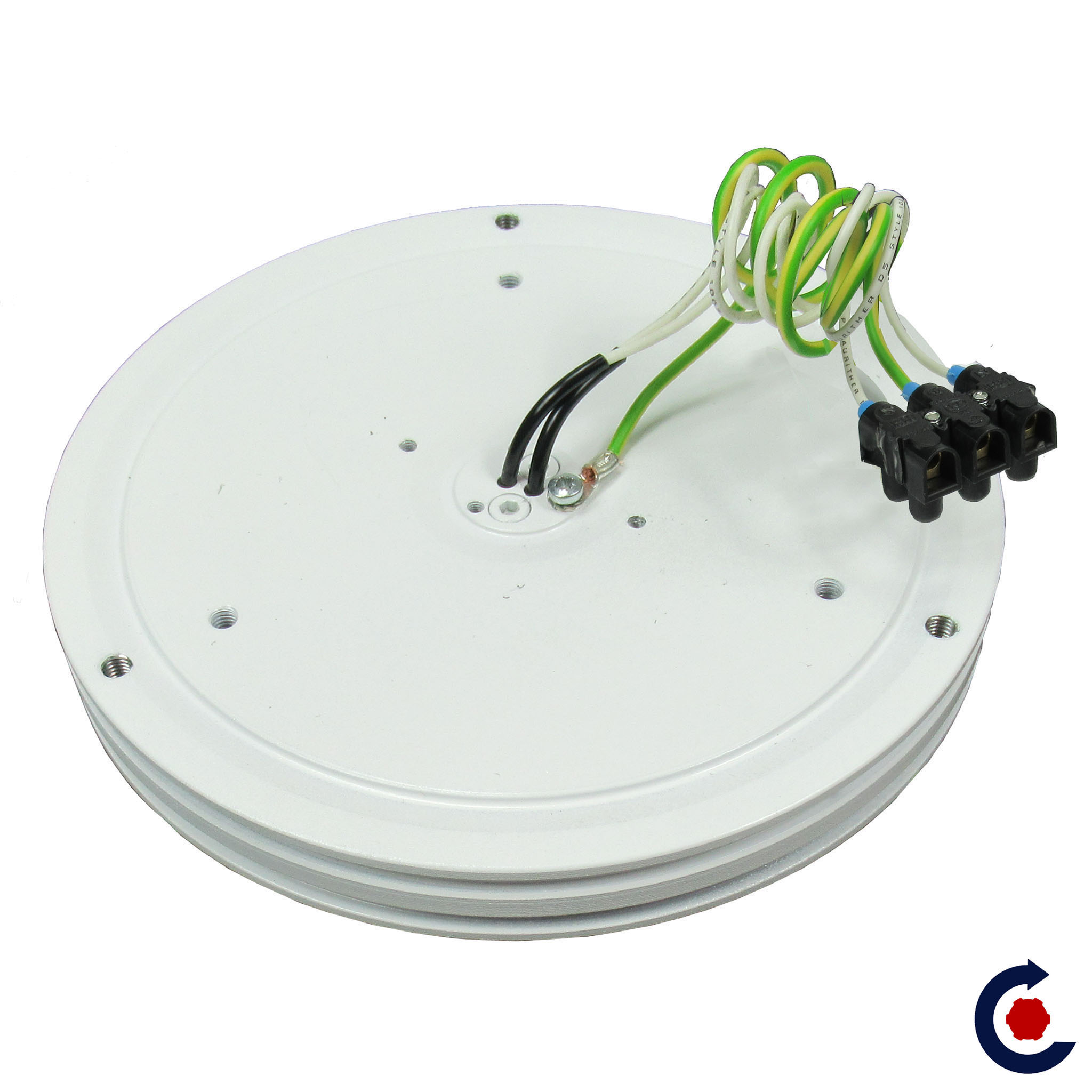

Fantastic Motors FANTASTIC B16 turntable - angled view with white circular plate, green-yellow electrical wires and black connector.
Fantastic Motors FANTASTIC B16 turntable - angled view with white circular plate, green-yellow electrical wires and black connector.
Platinum 360 ° DIY Kit FANTASTIC 150kg 500W
349.00 € HT
418.80 € TTC
Quantity
under 15 day(s)
Add to cart

The FANTASTIC B16 360° DIY turntable kit supports loads up to 150 kg and incorporates a 500 W / 230 Vac rotating electrical feed. Supplied without a motor, it allows the rotation speed and direction to be selected from the dedicated geared motors. The kit is supplied ready for assembly.



Other variants are available: use the “Customize” search tool below.



Read more



A turntable to motorize according to your project

This FANTASTIC B16 turntable is supplied as a DIY (Do It Yourself) kit. It is delivered without a motor and ready for assembly, allowing the installation to be customized with the geared motor suited to the project.

The rotation speed and direction therefore depend on the geared motor selected from the dedicated range.

Electrical power on the rotating section

The turntable incorporates a 500 W / 230 Vac 360° rotating electrical feed, providing electrical power on the rotating section.

Useful integration information:

  • Load capacity: Up to 150 kg;
  • Motorization: Geared motor to be selected separately according to the required speed and rotation direction;
  • Rotating electrical feed: 500 W / 230 Vac;
  • Assembly: Kit supplied ready for assembly;
  • Safety: Safety clutch;
  • Stability: Resists tipping;
  • Finish: White painted finish;
  • Use: Indoor use.

The electrical installation must comply with the applicable safety standards.

FAQ

It is supplied as a DIY kit ready for assembly. The motorization must be selected separately from the dedicated geared motors.
This FANTASTIC turntable configuration is designed for loads up to 150 kg.
Characteristics
Charge capacité  :  150 kg
Sens of rotation  :  Two-way
Ø rotating part  :  160 mm
Ø part base  :  160 mm
Rotating electrical inlet  :  500 Watt
Height  :  21 mm
Diameter  :  160 mm
Destination  :  FANTASTIC
Personalise

If no product listed, go back to "no filter"

Charge capacité (kg)
Speed rotation (tr/min)
Sens of rotation
Power supply
Rotating electrical inlet (Watt)
Destination
