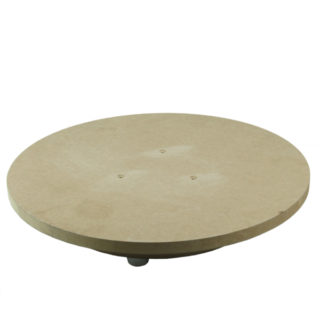

Revolving display ECONOMIC
80kg 4rpm B28 D40
Ref. P12LV40B28D40
260.00 € HT
312.00 € TTC

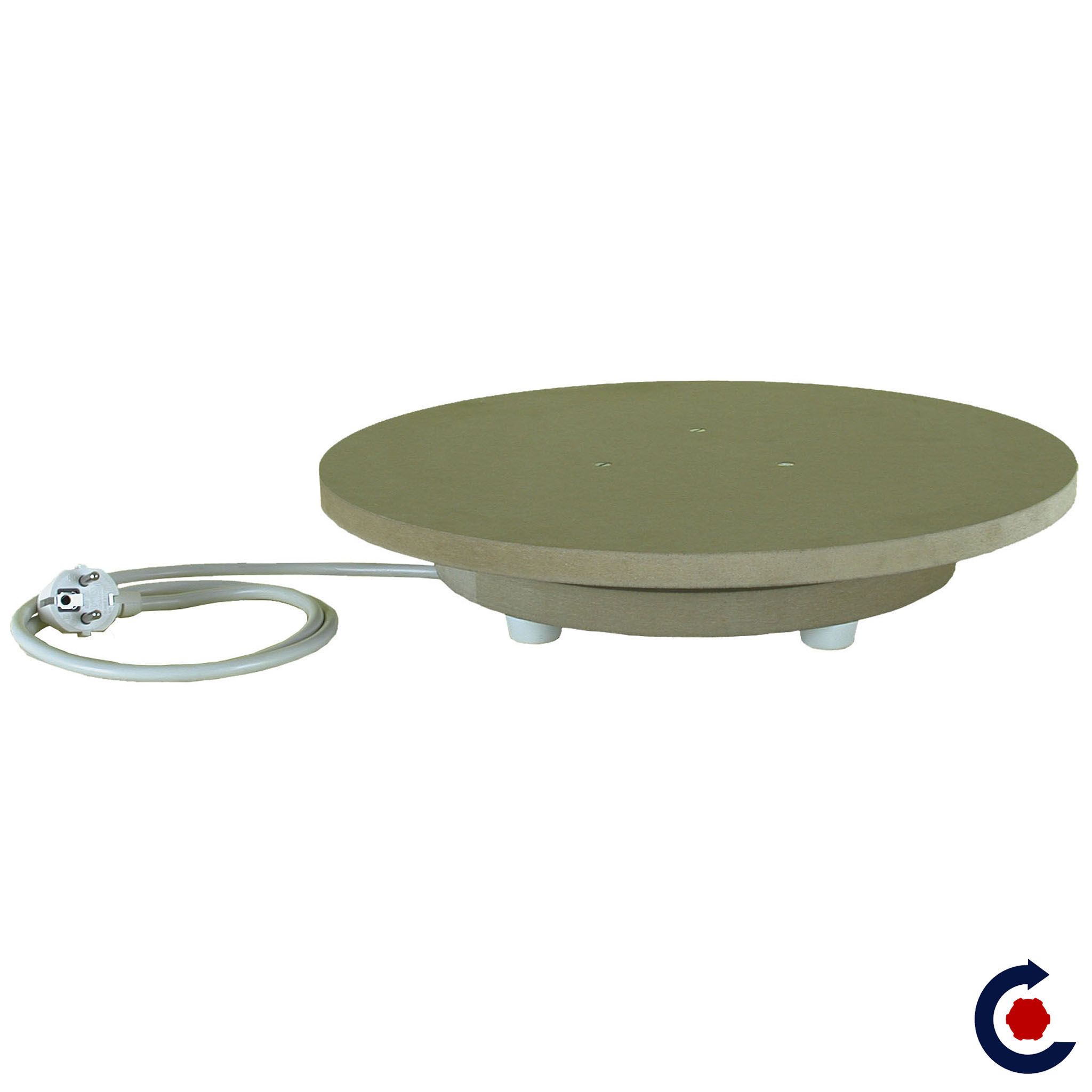

Turntable with medium-grade raw trays: this set provides a stable base and an enlarged rotating section, making it easy to attach to your own base and decor.
-
-
ECONOMIC B12L range
- Rotating section* Ø 400 x 16 mm
- 4 rpm
- Clockwise when viewed from above
- Max. load: 30 kg
- Safety clutch
- 3 M5 holes on rotating part
- Base* Ø 280 x 22 mm
- Equipped with 3 white rubber feet
- 230 Vac power cable
- Bi+T plug ~1.2m
- White paint
- Indoor use
-
*Raw medium
- Check the drive capacity of this range based on the weight, diameter (Ø) and height of your load. Refer to the chart available in the ‘Documentation’ section, accessible under the photo thumbnails on this page.
FAQ
It is designed to rotate products, displays and decorative elements up to 80 kg for enhanced visibility.
Yes. Made from steel and fitted with a safety clutch, this turntable has been designed to provide a simple, robust and durable solution for shop windows, display units, exhibitions, museums and promotional events. This design minimises premature wear and tear and helps to ensure the reliability of the installation over the years.
Yes. It is particularly suitable for retail displays, exhibitions and promotional presentations.
You should check the weight, diameter and height of the object to be moved at the same time, using the load chart provided in the product documentation.
The safety clutch protects people, sets and the motorised mechanism in the event of excessive stress or abnormal strain on the rotating part. It helps to preserve the components by limiting the risks associated with accidental overloading or the rotation becoming jammed.
Characteristics
Documentations
| Charge capacité | : | 80 kg |
| Speed rotation | : | 4 rpm tr/min |
| Sens of rotation | : | Clockwise |
| Power supply | : | 230 Vac |
| Ø rotating part | : | 400 mm |
| Ø part base | : | 280 mm |
| Height | : | 74 mm |
| Diameter | : | 400 mm |
| Destination | : | ECONOMIC |
| Classe | : | Reliable |
